CNC Swiss Machines: Features & "Sliding Head" Origins

CNC Swiss machines, also known as Swiss-type lathes, are essential in modern manufacturing due to their precision and efficiency in producing small, intricate, and complex components. These machines are called "Swiss" because they were originally developed in Switzerland for the watchmaking industry, known for their need for high precision.


The term "Swiss-type" or "sliding headstock" machine, comes from their unique design where the workpiece rotates and moves axially through a guide bushing while being machined, allowing for greater precision and support for slender parts.

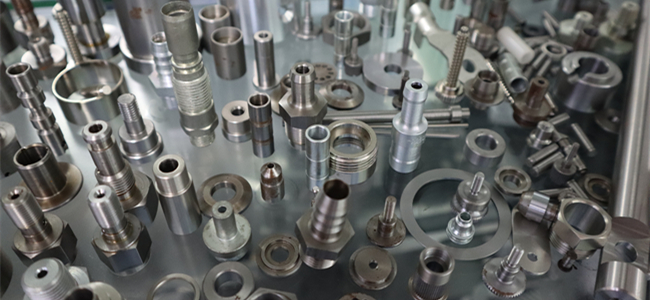

CNC Swiss machines are widely used in industries such as aerospace, medical devices, electronics, and automotive. Their ability to handle tight tolerances and produce high volumes of small parts makes them invaluable for manufacturing components like screws, pins, and other micro-machined parts. This versatility and accuracy underscore their critical role in modern manufacturing processes.

What are the special design features of a CNC Swiss machine?

CNC Swiss machines, or Swiss-type lathes, possess several unique design features that distinguish them from other machining equipment and provide specific advantages in high-precision manufacturing.

  • High-Speed Machining: One of the primary features of CNC Swiss machining is its capability for high-speed machining. This is enabled by their sliding headstock design, where the workpiece moves axially while rotating. This constant movement allows for continuous, high-speed cutting, significantly reducing cycle times and improving productivity.

  • Multiple Tool Configurations: Swiss machines are equipped with multiple tool configurations, often incorporating numerous cutting tools that can operate simultaneously. This multi-tool setup allows for complex parts to be machined in a single operation without the need for multiple setups, thereby increasing efficiency and accuracy.

  • Multi-Axis Design: Swiss-type lathes typically feature a multi-axis design, commonly with 5 to 12 axes. This multi-axis capability allows for the machining of complex geometries and intricate features that would be challenging or impossible to achieve with conventional lathes. The additional axes provide flexibility in machining angles and enable the creation of sophisticated parts in one seamless process.

  • Guide Bushing Support: A defining characteristic of Swiss machines is the use of a guide bushing, which provides continuous support to the workpiece close to the cutting tool. This support minimizes deflection and vibration, allowing for the machining of very small and slender parts with exceptional precision and surface finish.

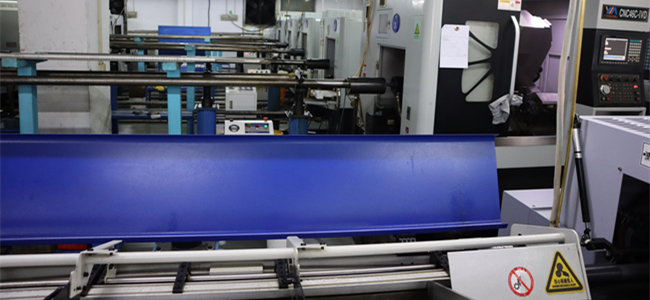

  • Versatility and Automation: CNC Swiss machines are highly versatile and can be configured for various operations such as milling, drilling, and turning within a single setup. They often come equipped with automation features, including bar feeders and part catchers, enabling unattended operation and further boosting productivity.


CNC Swiss machines offer high-speed machining, multiple tool configurations, multi-axis capabilities, and superior support for small, delicate parts. These features make them ideal for producing high-precision, complex components across various industries, including medical, aerospace, and electronics. Their efficiency and precision significantly enhance manufacturing capabilities, making them a critical asset in modern production environments.

What does “Swiss-type lathe” mean in CNC machining?

A "Swiss-type lathe" in CNC (Computer Numerical Control) machining refers to a specialized kind of lathe designed for the precise manufacturing of small, intricate components. Unlike conventional lathes, where the workpiece is fixed and the tools move, a Swiss-type lathe allows the workpiece to move along the Z-axis while the tools remain stationary. This unique configuration provides several key advantages.

Firstly, Swiss-type lathes offer exceptional precision and accuracy, making them ideal for producing complex, high-tolerance parts often used in industries like medical device manufacturing, aerospace, and electronics. The machine's design minimizes deflection and vibration, ensuring consistent quality and dimensional stability.

Secondly, these lathes are highly efficient for machining small diameters and long, slender parts. The support provided by a guide bushing, which is located close to the cutting tool, reduces the risk of workpiece deformation, particularly for delicate components.

Additionally, Swiss-type lathes often feature multiple tool stations and the capability to perform simultaneous operations, greatly increasing productivity. They can execute turning, milling, drilling, and even threading operations in a single setup, which reduces setup time and enhances efficiency.

Overall, a Swiss-type lathe is a versatile and precise CNC machine, tailored for the high-volume production of small, complex parts with stringent tolerances. This makes it a crucial tool in modern manufacturing where precision and efficiency are paramount.


Why is a Swiss type CNC called a sliding head?

A Swiss-type CNC lathe is often referred to as a "sliding head" lathe due to several distinctive features related to its design and operation:

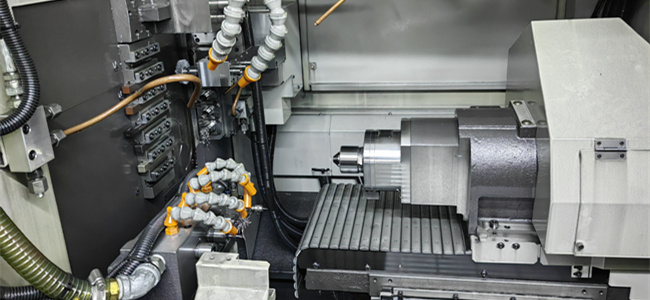

1. Sliding Headstock (Spindle Box): The main characteristic of a Swiss-type lathe is its sliding headstock. Unlike conventional lathes where the workpiece is fixed and the tool moves, in a sliding head lathe, the headstock (which holds the rotating spindle and workpiece) moves longitudinally along the Z-axis. This movement allows for continuous feeding of the workpiece through the cutting area, enabling precise and efficient machining of long, slender parts.

2. Guide Bushing: The use of guide bushing is another key feature that defines a Swiss-type lathe. The workpiece passes through a guide bushing, which is positioned close to the cutting tool. This arrangement provides support to the workpiece, minimizing deflection and vibration during machining. The guide bushing ensures that even very thin and long parts can be machined with high accuracy and stability.

3. Precision and Stability: The combination of the sliding headstock and guide bushing significantly enhances the precision and stability of the machining process. This setup is particularly beneficial for producing small, intricate components with tight tolerances, such as those used in the medical, aerospace, and electronics industries.

4. Versatility in Operations: Swiss-type lathes often feature multiple tool stations and the ability to perform various operations (turning, milling, drilling, threading) in a single setup. The sliding headstock allows these operations to be carried out efficiently and accurately, contributing to higher productivity and reduced setup times.

In summary, a Swiss-type CNC lathe is called a "sliding head" lathe because of its sliding headstock mechanism and the use of a guide bushing, which together provide exceptional precision, stability, and versatility in machining small, complex parts.
