Engineering Guide to Micro Fasteners: Precision Swiss Machining for Critical Applications

Table of Content [Hide]

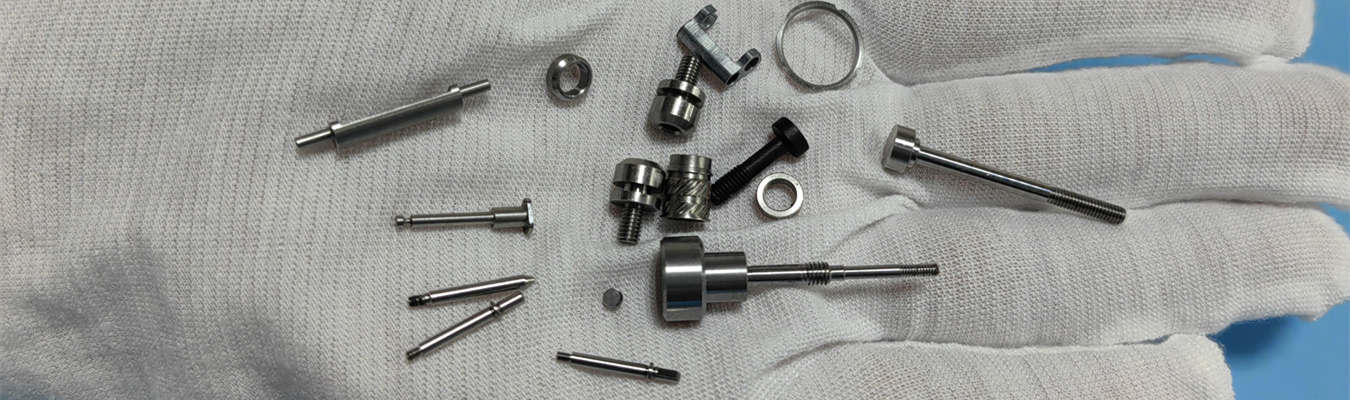

Miniaturized technology depends heavily on micro fasteners for operating correctly. Micro screws and bolts must provide reliable clamping forces in environments that are sometimes difficult to see (for example, inside an implantable medical device or in an aircraft avionics system subjected to high-g forces). This engineering reference outlines the processes associated with designing, selecting materials for, and producing reliable micro fasteners using Swiss-type CNC machining processes, focusing heavily on the capabilities of Falcon CNC Swiss.

Understanding Micro Fasteners: Definitions and Challenges

Micro fastener generally represents a threaded fastener whose nominal (displayed) diameter is less than 1.6 mm (#0 screw or M1.6). Within that classification, tiny machine screws and even smaller size machine bolts (as small as M0.3) are becoming more frequently specified in very compact assemblies. Common challenges include:

Maintaining concentricity between the head and thread on small diameter fasteners.
Achieving consistent thread profiles on precision micro screws without burrs or tearing.
Machining head geometries like miniature hex bolts or ultra-low profile heads.
Handling materials that are tough, corrosive-resistant, or biocompatible.

Traditional CNC lathes struggle with such dimensions due to part deflection and lack of synchronized support. This is where Swiss-type automation becomes essential.

Critical Material Selection for Micro Fasteners

Material choice directly impacts strength, corrosion resistance, and manufacturability. The table below summarizes common alloys and their applications in micro fasteners:

Material Family	Typical Grades	Key Properties	Primary Application
Stainless steel micro screws	303, 304, 316L, 17-4 PH	High strength, good corrosion resistance, non-magnetic options	Medical devices, industrial sensors, marine electronics
Titanium miniature bolts	Grade 5 (Ti-6Al-4V), Grade 23	Exceptional strength-to-weight ratio, biocompatible	Aerospace structures, orthopedic implants, high-end drones
Medical grade micro fasteners	316L VM, Titanium, MP35N	ISO 13485 compliant, non-cytotoxic, sterilizable	Surgical robotics, bone fixation, dental implants
Aerospace micro screws	A286, Inconel 718, Waspaloy	High-temperature stability, creep resistance	Engine controls, actuation systems, satellite mechanisms
Brass miniature fasteners	C360, C48500	Good conductivity, machinability, low friction	Electrical terminals, potentiometers, decorative hardware
Micro screws for electronics	Stainless, Nickel-plated brass	Low magnetic interference, fine pitch capability	Smartphones, connectors, micro speakers
Tiny fasteners for optics	303 Stainless, Titanium	Vibration stability, non-outgassing	Lens barrels, collimators, laser mounts
Corrosion resistant micro bolts	Hastelloy, Monel, Duplex stainless	Extreme chemical and saltwater resistance	Marine sensors, chemical analyzers, subsea electronics

Customized alloys used for machining exotic materials enables fasteners to be created out of materials such as MP35N & Elgiloy required for downhole tools or implantable pumps. Falcon CNC Swiss has a large library of alloys available to source small quantities of material for prototype and production purposes.

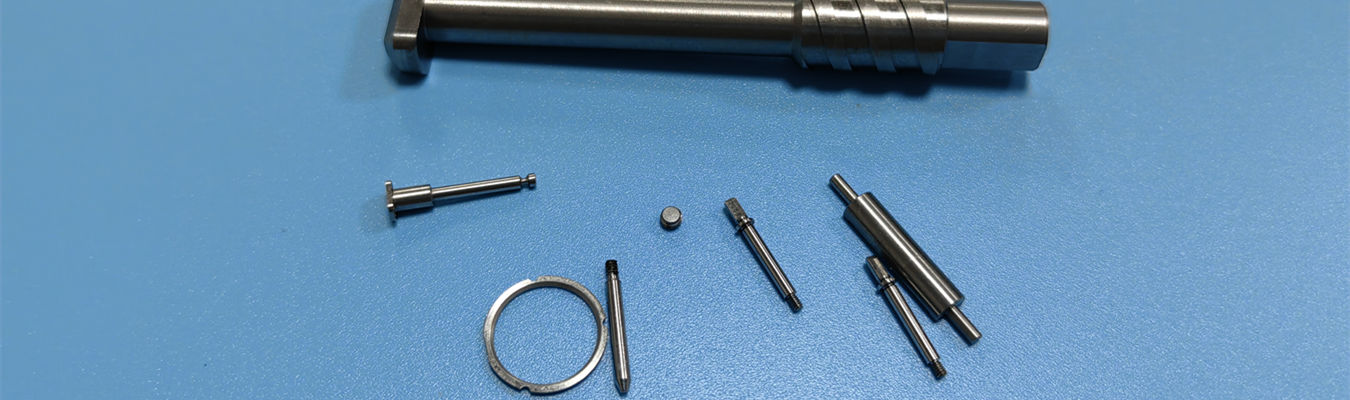

Swiss-Type Machining: The Enabler for Micro Thread Fasteners

Conventional turning induces part bending when the tool contacts the work. Swiss machining solves this by supporting the bar stock with a guide bushing, cutting very close to the support point. This yields:

Excellent concentricity between head, shank, and thread on micro thread fasteners.
Ability to cut threads as fine as 0.08 mm pitch (UNM or ISO M0.3).
Live tooling for cross holes, slots, and hex drives.
Backworking for head features without secondary operations.

Numerous leading manufacturers of micro screws have switched over to Swiss automated machinery because of its ability to meet specification tolerances with repeatable accuracy over very long runs (e.g. thousands of pieces up to millions of pieces). Also, several automotive and aerospace mini-bolt suppliers have used Swiss screw machines in order to maintain ±0.0002" tolerances on critical diameters.

Falcon CNC Swiss has a large array of both Tsugami & Cincom Swiss turning lathes (with high-pressure cutting fluids, powered tooling for accelerated speed of production) that are perfectly suited for production of small head screws where close tolerance under-head fillets or self-locking characteristics significantly affect product performance.

Falcon CNC Swiss: Advanced Capabilities for Micro Fasteners Production

With over a decade of dedicated Swiss machining experience, Falcon CNC Swiss delivers precision micro screws and miniature hex bolts across a wide spectrum of industries. Their core capabilities include:

Capability	Specification
Diameter range	0.2 mm – 20 mm (custom micro fasteners down to 0.5 mm head diameter)
Thread types	UNJ, UNF, UNC, ISO metric, M, MJ, custom pitches, roll or cut threading
Tolerances	±0.0002″ (0.005 mm) on critical diameters
Head styles	Hex, pan, flat, socket cap, button, truss, low-profile, custom shapes
Secondary operations	Milling flats, cross-drilling, slotting, knurling, laser marking
Surface finishes	Passivation, electropolish, anodize, zinc nickel, silver/ gold plating
Quality systems	ISO 9001:2015, AS9100D (aerospace), medical device batch traceability

Falcon has developed custom carbide microtools and programmed wear compensation to maintain accurate threaded holes through extended production runs on produced micro bolts. This helps ensure consistently accurate threaded holes in all micro bolts manufactured by Falcon. Falcon also will consult with engineers who manufacture micro screws regarding the most suitable alloy for their application(s), based on the desired balance of strength, weight & corrosion resistance.

Explore their full range:

Swiss machining services for complex miniatures
Swiss machined components portfolio across industries

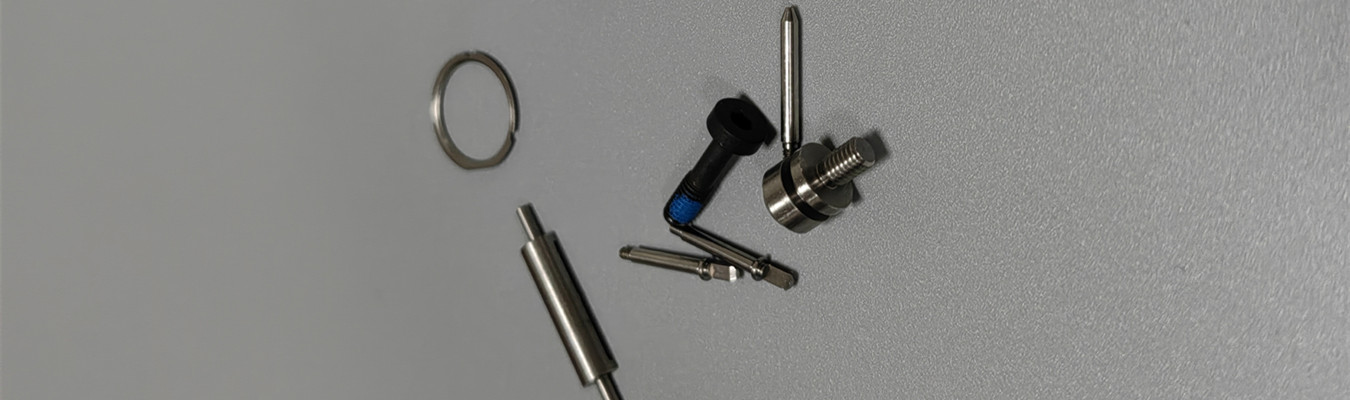

Bolt and nuts custom fasteners and mating hardware

Application Spotlight: From Medical Wearables to Aerospace

The need for micro fasteners is skyrocketing due to the increasing number of wearables being produced including smart watch hinges, fitness tracker enclosures, and hearing aid adjustments. These applications often use stainless steel micro screws with extremely low head heights (0.4mm or less) to eliminate protrusion above the skin surface.

For optics applications, micro fasteners are used in the assembly of lenses and prisms, holding them in a secure manner that does not cause any tilting issues. Micro bolts made of corrosion-resistant material (such as titanium or A286) are used to protect marine sensors exposed to saline conditions. In aviation, micro screws made from titanium or A286 ensure the structural integrity of part throughout a very wide range of operational temperatures.

The medical industry places great importance on reliability, and medical grade micro fasteners are typically manufactured from either 316L stainless steel or titanium. Due to the high reliability demanded by this industry, manufacturers will often have full material certification and provable process controls in place for their products. Falcon CNC Swiss has supplied thousands of precision micro screws to orthopedic surgical guides and implantable drug pumps, with every screw being fully inspected for thread quality.

Micro screws for electronics are serviced by the Swiss machining process and as such, can be manufactured with consistent micro threads and greater consistency in high-volume quantities. As a result, there will be fewer failures in the field caused by micro screws loosening due to vibration.

Why Partner with Falcon CNC Swiss for Your Micro Fastener Needs?

Choosing a fastener partner for micro applications goes beyond price. It involves:

Process validation for sub-millimeter features.
Material expertise including medical and aerospace certs.
Scalability from 100-piece prototypes to 500k-piece production.
Inspection using vision systems, laser micrometers, and thread gages.

Falcon CNC Swiss has the ability to make certain parts by producing many different types of micro thread fasteners. The design team supports DFM (design for manufacturability) to adapt the micro thread fasteners for high volume swage production. In addition, they can manufacture custom miniature hex bolts with drive diameters as small as 0.9 mm across flats.

Whether you need tiny machine screws for your new wearable, micro bolt sizes for an optical mounting system or small head screws for an RF shield, Falcon has the Swiss machining capability to produce reliable, repeatable results and meet your schedule.
