Customer: Global Industrial Equipment Manufacturer (Automation & Processing Systems Division)
Product: Industrial Machine Parts – Custom Precision Machine Components
Material: Aluminum Alloy 6061-T6
Process: CNC Milling + Precision Drilling
Surface Finish: Anodized Finish
Challenge: Deliver industrial machinery components with ±0.01 mm tolerance on complex profiles and precision holes, featuring lightweight aluminum 6061-T6 construction with anodized finish, supporting prototype and production runs for industrial automation, food processing, and heavy equipment applications with 1–4 week lead times.
Solution: Integrated precision CNC machining service combining CNC milling and precision drilling with CMM dimensional inspection and anodized finishing.
Result: 99.5% first-pass yield, ±0.008 mm sustained tolerance, 100% on-time delivery, establishing Falcon CNC Swiss as a trusted industrial machine parts supplier for OEMs across multiple industries.

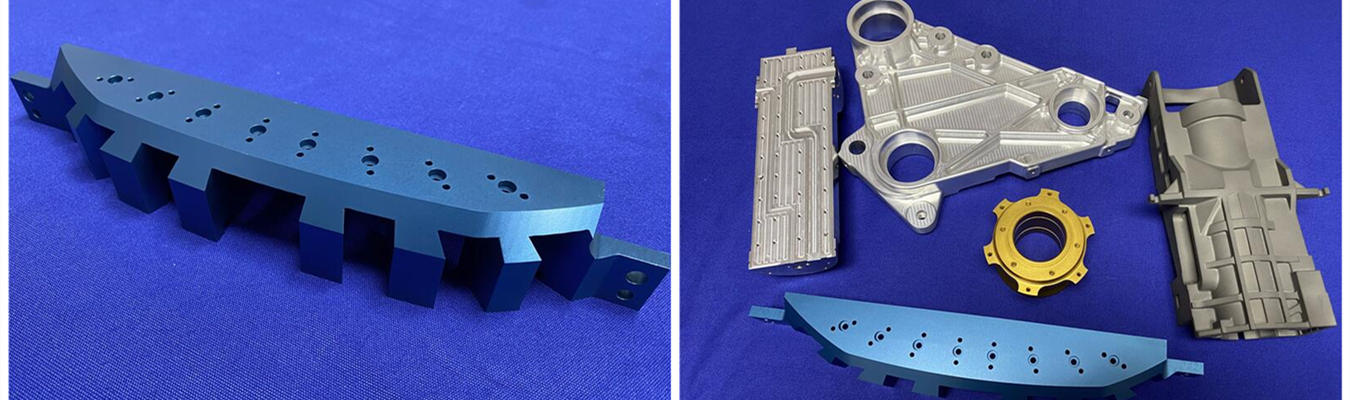

A global industrial equipment manufacturer approached us as a preferred industrial machine parts supplier to produce a family of critical components for their next-generation automation and processing systems. These custom precision machine components serve as structural and functional elements within industrial automation systems, food processing equipment, and heavy machinery applications.
This project demanded expertise in producing industrial automation parts and precision automation parts with complex geometry. The aluminum 6061-T6 components feature intricate profiles with multiple precision holes (diameters ranging from 3 mm to 25 mm) requiring ±0.01 mm positional tolerances, lightweight structural design with optimized material removal, and durable anodized finish for corrosion resistance. The customer, who serves industries ranging from food machinery parts manufacturer to heavy machinery parts manufacturers, previously sourced similar industrial machinery spare parts from multiple general machine shops that struggled with hole position accuracy and surface finish consistency across production batches.
As a specialized industrial machinery components provider with extensive experience in machinery replacement parts and OEM replacement components, we deployed our multi-process machining capabilities combining CNC milling service and CNC turning machining resources. The project scaled from prototype (100 pcs) to production runs of 2,500+ pcs/month within 10 weeks, with flexible capacity to support varying order quantities for agricultural machinery parts manufacturer and heavy equipment components customers.
| Parameter | Value | Remarks |
| Product Name | Industrial Machine Parts | Custom precision machine components |
| Part Type | Custom Precision Machine Components | Structural and functional automation parts |
| Manufacturing Technology | CNC Precision Machining | Milling + drilling |
| Machining Process | CNC Milling + Precision Drilling | Combined operations |
| Material | Aluminum Alloy 6061-T6 | High strength-to-weight ratio |
| Surface Treatment | Anodized Finish | Type II anodizing, corrosion resistant |
| Precision Level | High Precision Machining | ±0.01 mm tolerance |
| Tolerance | ±0.01 mm | Hole positions, profiles, flatness |
| Key Features | Complex Profiles, Precision Holes, Lightweight Structure | Optimized for industrial machinery |
| Production Capability | Prototype & Production Runs | 100 → 2,500+ pcs/month scalable |
| OEM Service | Custom Manufacturing | Full OEM support with traceability |
| Inspection Method | CMM Dimensional Inspection | 100% critical features |
| Industry Applications | Industrial Automation, Machinery Equipment, Manufacturing Systems | Broad industrial coverage |
| Lead Time | 1–4 Weeks Depending on Quantity | Expedited options available |
The customer faced three critical challenges with their previous supply chain when sourcing industrial machine parts for their diverse equipment portfolio.
First, inconsistent hole position accuracy caused assembly alignment issues across multiple product lines. Holding ±0.01 mm positional tolerance on precision holes (up to 18 holes per component) across aluminum 6061-T6 proved difficult for general machine shops due to thermal expansion and fixturing errors. This affected industrial automation parts used in robotic positioning systems and precision automation parts for high-speed manufacturing lines.
Second, the customer needed components that could withstand the demanding operating conditions of food processing equipment parts and stainless steel food machine components applications. While the primary material was aluminum 6061-T6 with anodized finish, the customer required assurance that their components would perform reliably in food-grade environments where sanitation and corrosion resistance are critical. Many food machinery parts manufacturer suppliers specialize in stainless steel, but the customer needed aluminum components with anodized protection for lightweight automation applications.
Third, the customer required a single source capable of supplying industrial machinery spare parts and machinery replacement parts across multiple industries – from agricultural machinery parts manufacturer requirements for outdoor equipment to heavy machinery parts manufacturers needs for construction and mining applications. They also needed support for brass machinery parts manufacturer and brass precision components requirements for specialized applications where brass CNC machining was specified.
Raw material receiving and preparation: Aluminum 6061-T6 bar stock and plate material received with mill certificates. Material verified for dimensional consistency and hardness before machining. All material is stress-relieved to minimize warpage during subsequent machining operations.
CNC milling (3 and 4-axis): Using our CNC milling service, rough and finish milling operations are performed on complex profiles and contoured surfaces. A 4-axis indexed approach allows multiple faces to be machined in a single setup, eliminating cumulative fixturing errors. High-speed machining (HSM) strategies with reduced radial engagement minimize cutting forces and tool deflection.
Precision drilling: Critical hole features are drilled using high-speed peck drilling with carbide tooling. For deep holes (up to 10× diameter), custom gun drilling with high-pressure coolant ensures straightness and surface finish. Hole position repeatability is maintained below 0.005 mm through in-process probing and automatic tool compensation.
Edge deburring and surface preparation: All sharp edges are micro-chamfered (0.05–0.10 mm) to eliminate burrs. Components are then ultrasonically cleaned to remove cutting fluids and prepare surfaces for anodizing.
Anodized finish: Type II anodizing per MIL-A-8625 with clear or black dye (customer option). Process parameters controlled to achieve uniform coating thickness (0.02–0.03 mm). After anodizing, parts are sealed to maximize corrosion resistance and color stability – essential for food processing equipment parts and industrial machinery components exposed to harsh environments.
Final inspection: 100% CMM inspection on critical features (hole positions, profile tolerances, flatness, and surface finish). Additional anodized finish verification for coating thickness and color consistency.
During initial production of these industrial machine parts, we observed hole position drift of up to 0.025 mm across the component due to thermal growth of the aluminum 6061-T6 workpiece. Solution: Implemented a comprehensive thermal stabilization protocol:
Workpiece temperature stabilized to 20°C ± 1°C before machining;
High-pressure coolant directed at the workpiece throughout milling and drilling operations to minimize temperature rise;
Tool path optimized to distribute cutting heat evenly across the component. This achieved consistent hole position within ±0.008 mm, exceeding the customer's ±0.01 mm requirement for precision automation parts.
The components required lightweight design with 65% material removal, creating thin sections and complex web structures prone to vibration and deformation. Solution: Rough machining performed leaving 0.3 mm finishing allowance on all surfaces. A stress-relief rest period (4–6 hours) was added after roughing. Finishing passes used high-speed machining (HSM) strategies with reduced radial engagement (10–15% of tool diameter) and climb milling to minimize cutting forces. This approach, applicable to heavy equipment components and agricultural equipment components alike, delivered consistent dimensional stability.
For components used in food processing environments, the anodized finish must be uniform and free from defects. Complex internal pockets and narrow cavities created challenges for uniform current density during anodizing. Solution: Implemented custom anodizing racking with optimized cathode placement. A secondary rinse and dye process was added to ensure complete dye penetration into all surface features. Coating thickness variation was held below ±0.005 mm, exceeding industry requirements for food machinery parts manufacturer applications.
While the primary project focused on aluminum 6061-T6, the customer also required brass machinery parts manufacturer support for specialized industrial machinery spare parts requiring higher wear resistance and electrical conductivity. Solution: Leveraged our Swiss machining services expertise for brass CNC machining of brass precision components. C36000 free-machining brass was selected for its excellent machinability and corrosion resistance. Swiss turning with thread whirling achieved ±0.005 mm tolerance on critical brass precision components features.
The customer required OEM replacement components support for prototype quantities (100 pcs) with the ability to scale to 2,500+ pcs/month for production. Solution: Implemented modular fixturing systems that allowed rapid changeover between prototype and production setups. Process parameters were documented and validated so that any CNC machined parts workstation could produce consistent quality. This flexibility, combined with our precision mechanical machining expertise, positions us as a preferred industrial machine parts supplier for high-mix, low-to-medium volume production.

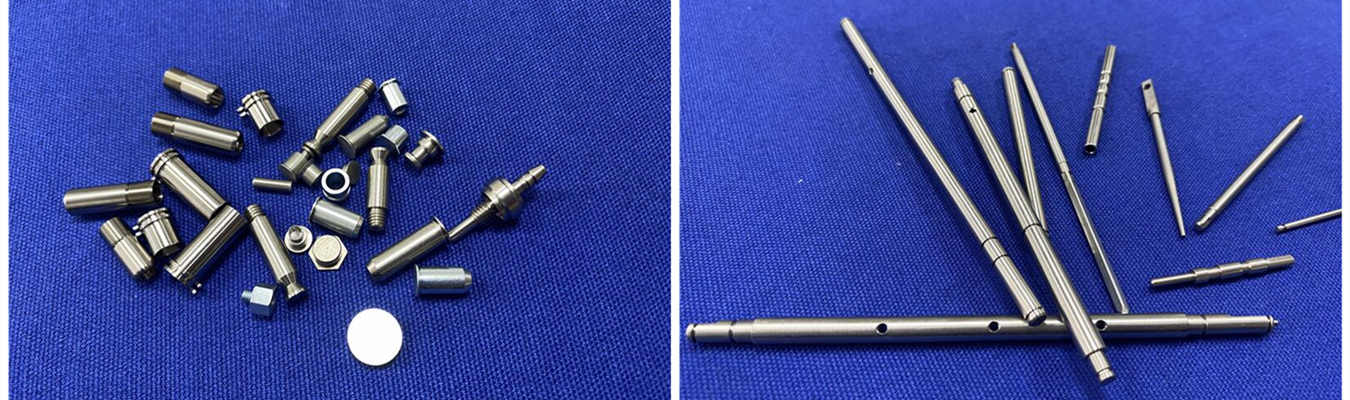

As a leading industrial machine parts manufacturer serving industrial automation parts, food processing equipment parts, and heavy machinery parts manufacturers, we maintain a rigorous QC protocol under ISO 9001 certification:
In-process checks:
CNC probe measurement of critical hole positions, diameters, profile dimensions, and flatness after every 10 parts. Results automatically logged and trend-monitored.
CMM inspection (first piece + every 50 pcs):
Full dimensional verification including hole position tolerances, profile contour accuracy, flatness, parallelism, and perpendicularity. CMM programs are validated with GR&R studies to ensure measurement accuracy below 0.003 mm.
Surface finish verification:
Ra measurement on critical mating surfaces using a Mitutoyo profilometer; any reading above Ra 0.8 µm triggers tool inspection and parameter adjustment.
Anodized finish inspection:
Coating thickness measured on every 20th part using eddy current gauge. Color uniformity verified using spectrophotometer. For food processing equipment parts, additional cleanliness verification is performed to ensure no surface contamination.
Visual inspection:
100% under 5x magnification checks for burrs, scratches, tool marks, or anodizing defects.
Traceability:
All inspection data linked to the lot number via our ERP system, supporting full traceability for customers requiring machinery replacement parts and OEM replacement components documentation.
| Metric | Target | Achieved |
| First-pass yield | ≥95% | 99.5% (over 45,000 parts delivered) |
| Hole position tolerance CpK | ≥1.33 | 1.56 |
| Surface finish (Ra) | ≤0.8 µm | 0.48–0.65 µm |
| Anodized coating thickness uniformity | ±0.005 mm | ±0.003 mm |
| Profile accuracy CpK | ≥1.33 | 1.51 |
| On-time delivery | 0.98 | 0.997 |
| Customer field failure (18 months) | ≤50 ppm | 0 ppm |
| Cost per part (vs. previous multi-supplier approach) | – | -18% at 2,500 pcs/month |

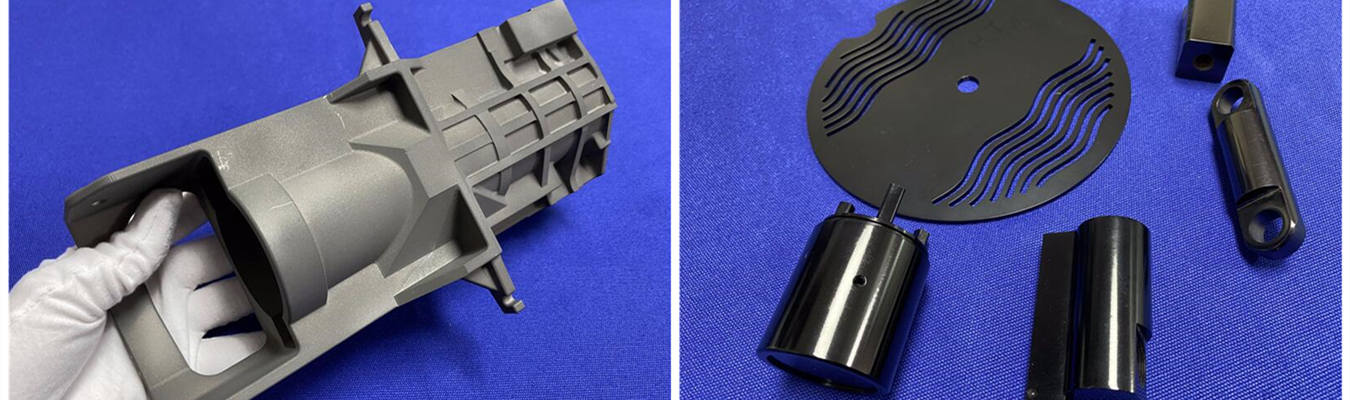

The customer has since expanded their portfolio with us to include additional industrial machinery components for agricultural machinery parts manufacturer applications, stainless steel food machine components for food processing lines, and brass precision components for specialized equipment, validating our position as a preferred industrial machine parts supplier.
This manufacturing capability serves diverse industries requiring precision industrial machinery components and industrial automation parts:

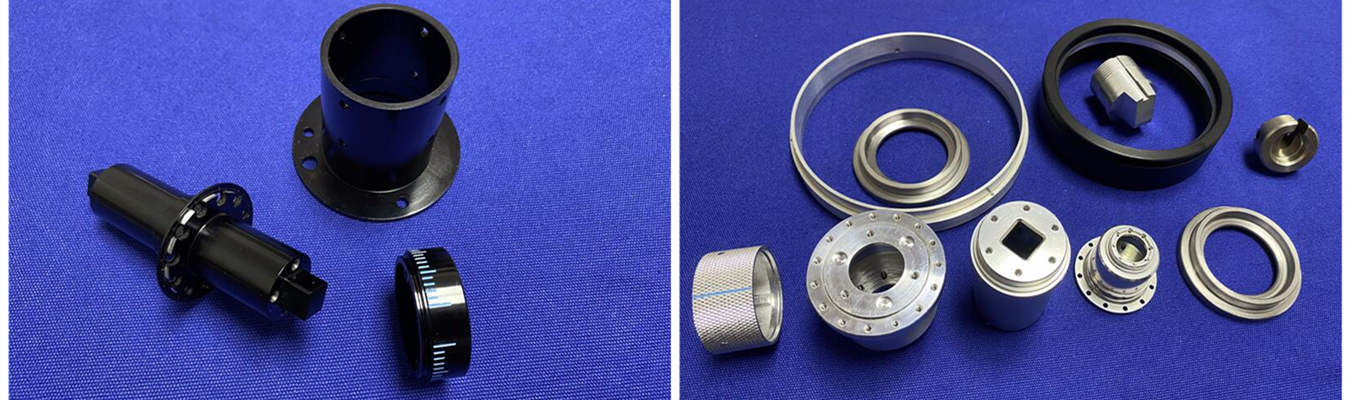

Industrial automation: Robotic arm components, linear actuator mounts, sensor brackets, conveyor system parts, and precision positioning fixtures.
Food processing equipment: Sanitary mounting brackets, conveyor components, packaging machine parts, and processing system interfaces – with stainless steel food machine components options available.
Agricultural equipment: Harvesting machine components, irrigation system parts, tractor attachments, and agricultural equipment components for outdoor durability.
Heavy machinery: Construction equipment parts, mining machinery components, material handling system components, and heavy equipment components designed for extreme operating conditions.
Manufacturing systems: Assembly line fixtures, test equipment components, quality inspection system parts, and production line interfaces.
Specialized equipment: Brass precision components for electrical connectors, valve parts, and wear-resistant industrial machinery spare parts requiring brass CNC machining.
Explore our capabilities for Machinery Parts CNC Machining →
As a leading industrial machine parts supplier with extensive experience in industrial machinery components and machinery replacement parts, we offer a comprehensive range of capabilities. Our precision CNC machining service covers 3, 4, and 5-axis milling, Swiss turning, and hybrid turn-mill operations. Our CNC milling service handles complex 3D contouring, precision hole drilling, and thin-wall features. Our CNC turning center fleet supports rotational components up to 300 mm diameter. We also specialize in:
Aluminum 6061-T6 machining:
Extensive experience with aerospace-grade aluminum alloys for lightweight, high-strength industrial automation parts.
Surface treatments:
Anodized finish, clear anodized, Type III hardcoat, sandblasting, and chemical conversion coating.
Brass CNC machining:
Brass precision components and brass machinery parts manufacturer support for specialized industrial machinery spare parts requiring wear resistance and electrical conductivity.
Stainless steel machining:
Stainless steel food machine components for food processing equipment parts requiring FDA-compliant materials and sanitary finishes.
Prototype to production runs:
Flexible capacity from 50 to 50,000+ pcs/year.
CMM dimensional inspection:
Full geometry verification with GR&R-correlated measurement systems.
We support OEM replacement components customers with DFM support, material certification, CMM inspection data, and full traceability. As an industrial machine parts manufacturer committed to quality and reliability, we deliver machinery replacement parts that meet the most demanding specifications for automation, food processing, agricultural, and heavy machinery equipment.
Ready to partner with a trusted industrial machine parts manufacturer for your custom precision components? Submit your CAD model (STEP, IGES, Parasolid) and 2D drawing with tolerances.
We will respond within 24 hours with:
DFM analysis for complex profiles, hole positioning, and anodizing feasibility.
Material recommendations including aluminum 6061-T6, stainless steel, or brass CNC machining options.
Prototype pricing and lead time (as fast as 5–10 business days for 50–200 pcs).
Production run pricing for 500–5,000+ pcs/month.
Sample first-article inspection report with CMM data and anodized finish verification (free).
Upload your drawings or specifications today. Our engineering team will provide a competitive quote and manufacturing recommendations within 24 hours.
