Case Study: Precision CNC Machining of Leak-Proof Liquid Cooling Connectors for High-Performance Thermal Management Systems

Table of Content [Hide]

Customer: Global Thermal Management Solutions Provider (Data Center & EV Battery Cooling Division)

Component: Precision Water-Cooled Connector – threaded, quick-disconnect capable interface for liquid cooling loops
Challenge: Deliver 50,000 units of a leak-proof liquid cooling connector with ±0.01 mm dimensional tolerance, Ra ≤0.8 μm surface finish, and zero leakage at 1.0 MPa working pressure, while overcoming thin-wall deformation and burr-free internal groove machining.
Solution: Multi-axis CNC turn-mill composite machining + custom tooling for inner grooves + ultrasonic cleaning and passivation + 100% air tightness testing.
Result: 0% leakage in post-assembly validation, CpK ≥1.33 on all critical features, 99.5% first-pass yield, and 20% faster cycle time compared to conventional multi-machine processes.

Project Overview

A top producer of liquid cooling connectors was looking for a trustworthy source to manufacture the next generation of custom liquid coolers for high-density server racks and EV batteries thermal management systems. The component needed to be made out of SS316L (stainless steel) material due to its high corrosion resistance, very precise geometric tolerances, and a polished internal finish to reduce flow resistance and limit the potential for obstruction caused by solid contamination or debris particles.

The use of traditional multi-step machining (turning on one machine and milling on a different machine) resulted in misaligned features, internal burrs within the fluid path and inconsistent sealing capabilities. This led to the need for a supplier of bulk liquid cooling connectors who could provide high volume production (50,000 pcs/month) without sacrificing leak integrity or dimensional stability. As an established industrial cooling connector supplier, we proposed to utilize a one-hit 5-axis CNC turn-mill process along with post machining processes and 100% air leak testing.

We initially developed a new OEM liquid cooling connector system and brought this product to market using the latest in precision machining technologies, including both ISO 9001:2015 and IATF 16949 certifications. From this initial prototype stage, we were able to create an entire line of OEM liquid cooling connectors for the contract manufacturing industry within a 14-week timeframe, which meant consistently high-quality manufacturing and total traceability of every wholesale liquid cooling part produced with the new connectors.

Looking for similar precision solutions? Explore our Swiss Machining Services for complex connector and fitting components.

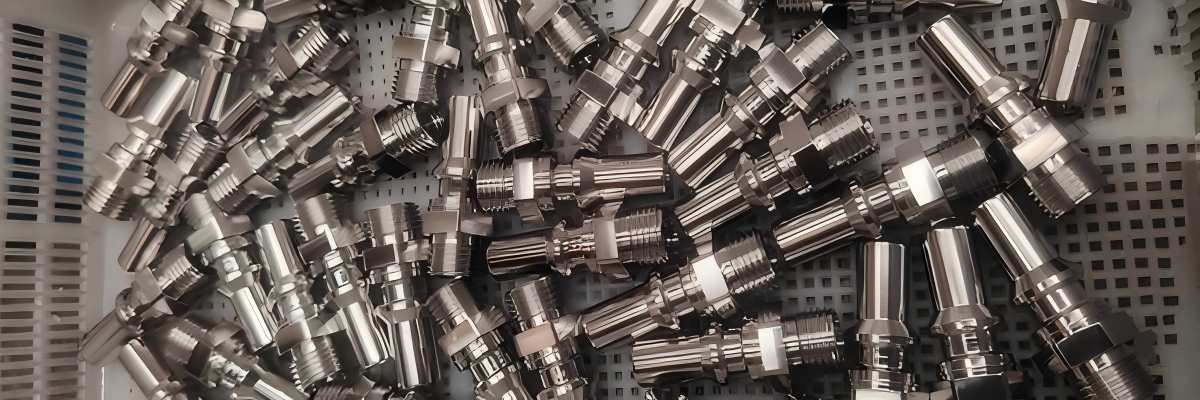

custom liquid cooling fittings factory - high-volume CNC machining of SS316L connectors

Technical Specifications Table

Parameter	Specification	Remarks

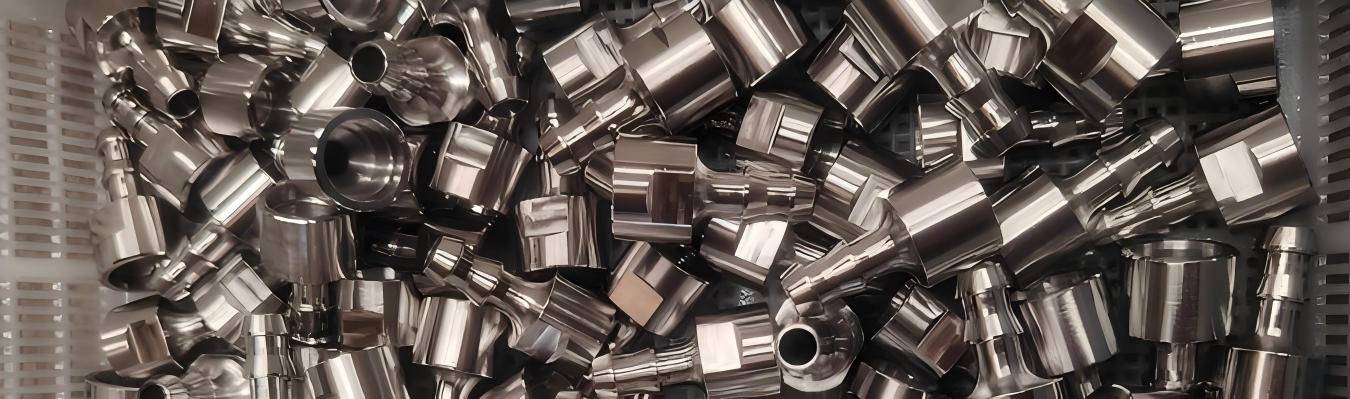

Product	Precision Water-Cooled Connector	Custom CNC machined fluid connector
Material	SS316L	Corrosion-resistant for long-term water contact
Process	CNC turn-mill (5-axis)	One-time forming of complex features
Dimension Tolerance	±0.01 mm	Strict assembly fit
Thread	ISO 6g / 6H	Leak-proof connection
Surface Roughness	Ra ≤ 0.8 μm	Reduces fluid resistance
Coaxiality	≤ 0.02 mm	Concentric assembly
Perpendicularity	≤ 0.015 mm	Flat sealing for pressure tightness
Difficulty	High	Thin walls, deep holes, inner grooves
Key Challenges	Deformation, burr-free inner groove, alignment	Strict process control needed
Post-Processing	Ultrasonic cleaning + passivation	Removes residues, improves corrosion resistance
QC	Visual + CMM + 1.0 MPa air leak test	Zero leakage under working pressure
Application	Industrial water cooling, fluid transmission	High-pressure, leak-proof environments

Customer Challenge

Originally, the purchasing department bought quick disconnect liquid cooled connectors from a general machine shop. They experienced three ongoing issues:

Micro-Leakage under Pressure: The poor surface finish (Ra 1.6 μm) and out of tolerance threads resulted in micro-leakage at 0.8 MPa, forcing the customer to spend time and money on costly rework at system integration.
Internal Burr: The process of CNC drilling and tapping left sharp burrs in the internal fluid passage, which subsequently broke loose while in service, plugging downstream cold plates and pumps.
Thin-Wall Deformation: The wall thickness was as low as 0.8 mm at the O-ring groove, which caused the wall to ovalize and break the leak-proof seal from clamping.
Inconsistent Concentricity: The coaxiality between the threaded end and the sealing face was greater than 0.05 mm; therefore, when installed there was a lack of alignment and uneven compression of the gasket.

The customer has requested that a new dedicated leak-proof cooling connector testing methodology and process be developed to facilitate the manufacture of threaded liquid cooled connectors/compression fittings for liquid cooled systems with complete reliability. The customer is also looking for a partner with extensive knowledge regarding the various materials for liquid cooled connectors, more specifically corrosion resistant cooling fittings suited to long term use with a glycol-water solution.

Manufacturing Process

SS316L cold-drawn bar stock with mill test certification is prepared for the following processes:

Multi-axis CNC turn-mill machining (one clamping):

Roughing and finishing of the outside diameter and interior diameters using CBN inserts (cubic boron nitride).
Internal ISO 6H threads (no tap breakage, perfect threads, use of thread-whirling process).
Cross holes and anti-rotation flats are produced using live tooling.
Internal O-ring groove completed using a custom PCD (polycrystalline diamond) form tool—zero burrs.
Thin wall finishes using a minimal clamping force using an air chuck and back support.

Deburring and edge finishing uses a combination of a micro-abrasive nylon brush and a thermal energy method (TEM) to finish inaccessible internal intersections.

Ultrasonic cleaning—multi-stage (alkaline detergent, DI water, hot air) results in a particle count less than or equal to 200 particles greater than 10 microns.

Nitric acid passivation in accordance with ASTM A967 will enhance corrosion resistance for long-term continuous exposure to water.

All parts received 100% automated air leak testing (at 1.0 MPa) using pressure decay method with a maximum allowable leak rate of 0.1 scc/min.

CMM inspection provides 100% of samples checked for critical dimensions (coaxiality, perpendicularity, and thread pitch diameter).

Looking for qualified precision connectors solutions? Explore our Swiss machined connectors and fittings.

Machining Challenges and Solutions

Challenge	Root Cause	Solution Implemented
Thin-wall deformation (ovalization >0.02mm)	Collet clamping force on thin section	Air-actuated collet with programmable low pressure + mandrel support during final bore pass
Burrs inside internal groove	Traditional grooving tool exit burr	Custom PCD form tool with optimized entrance/exit chamfer; no secondary deburring needed
Coaxiality drift (>0.025 mm)	Multiple clamping in conventional process	Single-clamping 5-axis turn-mill eliminated refixturing errors
Surface roughness exceeding Ra 0.8	Built-up edge on 316L	High-pressure coolant + polished CBN inserts + reduced cutting speed (120 m/min)
Thread galling during assembly	Rough thread flanks from single-point threading	Thread whirling with multiple light passes + 100% thread go/no-go with torque monitoring
Residual particles after cleaning	Inadequate ultrasonic parameters	Optimized frequency sweep (40 kHz) + extended rinse time + particle count verification

Quality Control

Each production run of bulk liquid cooling connectors is governed by a comprehensive IATF 16949 based quality control program:

In-process

Renishaw CNC probe to verify the critical diameters after rough machining - Automatic application of tool wear compensation.
In-line vision system to confirm groove and absence of large burrs.

Lab check (sampling at AQL 0.65) includes

CMM for geometry: coaxiality, perpendicularity, thread pitch diameter, bore roundness.
Mitutoyo Surface Finish Tester - Finished sealing face and bore within Ra ≤0.8 µm.
Optical comparator for thread profile and groove radius verification.

100% Final Testing

Automated air leak test at 1.0 MPa (140 psi) - Pressure decay less than 0.1 kPa in 30 seconds is a PASS.
Visual inspection at 10x magnification for surface defects and residual burrs.
Material verification by PMI (XRF) on every lot to ensure that SS316L specifications are met.
Cleanliness verification through extraction and counting of particles according to ISO 16232 (for medical and electronics cooling applications).
All data is uploaded to an SPC system in the cloud for real-time CpK monitoring with complete traceability.

Production Results

Metric	Target	Achieved
First-pass yield	≥95%	99.5% (after process stabilization)
Leak test rejection rate	<1%	0.2% (all reworked and passed)
Coaxiality CpK	≥1.33	1.52
Surface roughness CpK	≥1.33	1.48
On-time delivery	98%	99.8%
Field failure rate (12 months)	≤50 ppm	0 ppm (no leaks reported)
Cycle time per part	90 sec	72 sec (20% improvement)

The client has officially endorsed our company to serve as its main contract producer for liquid cooling connections in three more major product categories, (including) such items as quick disconnect fittings for liquid cooling and high-flow connectors for liquid cooling systems.

Industry Applications

The company provides thermal management connectors for a wide range of industries including but not limited to:

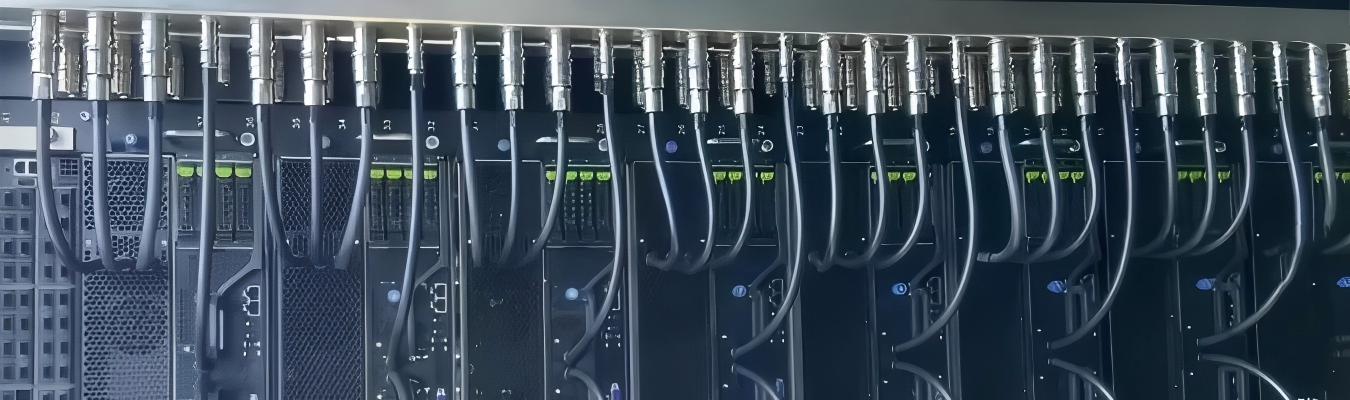

Data center liquid cooling connectors use, including direct-to-chip cold plate interface and CDU connections.
PC water cooling connectors including threaded G1/4 fittings for custom loop cooling systems.
EV battery cooling connectors thermal management systems.
Server rack cooling fittings for liquid cooling distribution systems.
Industrial chiller connectors with high flow rates and resistant to corrosion for industrial process cooling applications.
Compact and rated for GPU liquid cooling connectors for artificial intelligence accelerators and graphics processing units.
Medical device cooling fittings for cooling laser and magnetic resonance imaging (MRI) medical devices.
High-pressure liquid cooling connectors rated up to 2.0 MPa for special-purpose equipment cooling applications.

If you are looking for wholesale or OEM partners in the liquid cooling hardware industry we consistently deliver repeatable quality and zero leak performance through our expanding line of thermal management connector products.

Related Manufacturing Capabilities

As a specialized liquid cooling connector manufacturer, we offer end-to-end solutions:

CNC turn-mill machining – 5-axis, multi-spindle, live tooling
Custom liquid cooling fittings factory – In-house design, prototyping, and high-volume production
Bulk liquid cooling connectors – Scalable from 1,000 to 500,000 pieces/month
Industrial cooling connector supplier – Threaded, compression, barbed, and quick-disconnect styles
Precision cooling connector machining – ±0.005 mm capability for ultra-critical features
Leak-proof liquid cooling connectors – 100% air or helium leak testing (customizable sensitivity)
Threaded liquid cooling connectors – ISO, NPT, BSP, and custom thread forms
Compression fittings for liquid cooling – Ferrule-style, bite-type, and flare connections
Liquid cooling connector materials – SS303, SS304, SS316L, brass, copper, aluminum, and high-temp polymers
Corrosion resistant cooling fittings – Passivation, electropolishing, nickel plating, and epoxy coating
High-flow liquid cooling connectors – Optimized internal geometry for minimal pressure drop
Thermal management connectors – Custom engineered for data center, EV, and medical thermal systems
Leak-free cooling connector testing – In-house automated test stands with data logging for each serialized part

We are ISO 9001:2015, IATF 16949, and ISO 13485 certified (medical), with ITAR registration. Our engineering team supports OEM liquid cooling connectors programs from concept to production, including DFM, FEA, and PPAP submission. Explore more advance precision CNC machining service to meet your project requests.
