Case Study: Precision CNC Machined Structural Housing

Partnering with a Trusted CNC Precision Machining Manufacturer for Complex Structural Housings

Customer: Global Robotics & Automation Solutions Provider
Product: Precision CNC Machined Structural Housing – robotic arm base / control enclosure
Material: Aluminum 6061-T6
Process: 3, 4 & 5-Axis CNC Machining
Maximum Part Size: 450 mm
Surface Treatment: Anodizing, Sandblasting
Challenge: Deliver a complex structural housing with deep cavities, thin walls, and precision mounting surfaces, holding ±0.01 mm tolerance on critical features while providing oem precision CNC machining from prototype through high-volume production with 7–20 day lead times.
Solution: Multi-axis precision CNC machining service combining 3/4/5-axis milling with CMM inspection and post-machining anodizing/sandblasting.
Result: 99.3% first-pass yield, ±0.008 mm sustained tolerance, 100% on-time delivery for 25,000+ structural housings delivered, establishing Falcon CNC Swiss as a premier CNC precision machining manufacturer for robotics and automation OEMs.

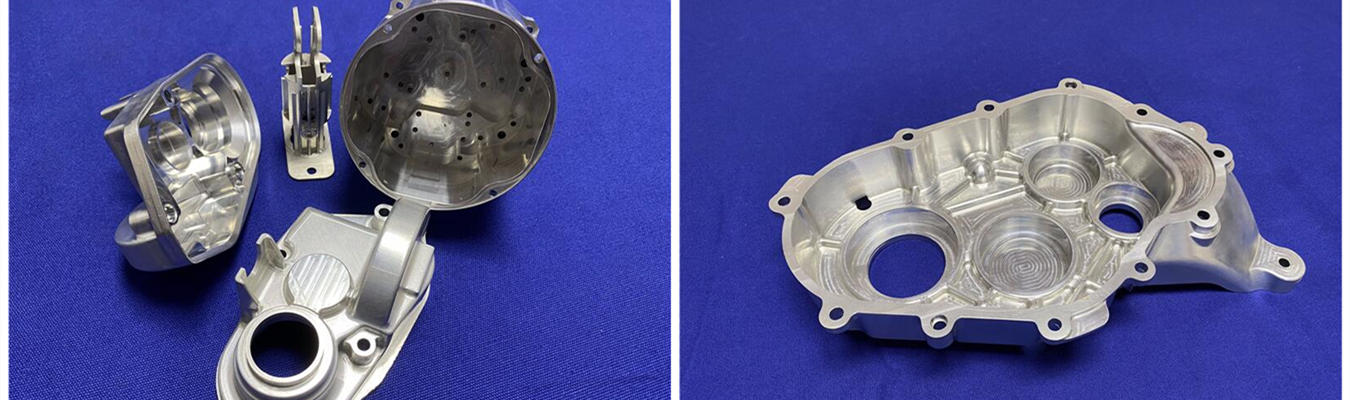

Project Overview: OEM Precision CNC Machining Parts for Robotics and Semiconductor Equipment

A global leader in robotics and industrial automation approached us as a precision CNC machining company to produce a critical component: a precision CNC machined structural housing. This aluminum 6061-T6 housing serves as the structural backbone of a next-generation robotic arm, integrating motor mounts, sensor cavities, control board mounting surfaces, and cable routing channels into a single monolithic component.

This project demanded expertise in producing oem precision CNC machining parts and precision custom CNC machining parts with complex geometry. The housing features deep cavities (up to 80 mm depth), thin walls (minimum 1.2 mm wall thickness), and multiple precision mounting surfaces requiring ±0.01 mm flatness and parallelism tolerances. The customer previously sourced similar components from general machine shops that struggled with warpage during machining of 6061-T6 aluminum and could not maintain tolerance consistency across production batches.

As a CNC machining precision parts supplier and precision CNC machining parts provider with extensive experience in robotics and semiconductor equipment manufacturing, we deployed our multi-axis machining capabilities combining CNC milling service and CNC turning service resources. The project scaled from initial prototyping (50 pcs) to full production of 2,000+ pcs/month within 10 weeks, with the ability to scale to 10,000+ pcs/month for high-volume CNC precision machining suppliers requirements.

Technical Specifications Table

From Prototype to Production

Whether you need 100 pieces or 100,000 pieces, we're ready to support your project.

Request a Quote → Get expert guidance on machining processes, materials, and surface finishes.

Customer Challenge: Finding a High Precision CNC Machining Supplier for Complex Structural Components

The customer faced three critical challenges with their previous supply chain when sourcing CNC precision machined components for their robotic systems.

First, inconsistent flatness on critical mounting surfaces caused misalignment between the motor mount and the control board, leading to excessive vibration and premature bearing failure. Holding ±0.01 mm flatness across a 450 mm aluminum housing proved difficult for general machine shops due to 6061-T6's internal stress release during rough machining. As a result, warpage of up to 0.05 mm occurred after clamping forces were released.

Second, thin-wall deflection during precision custom CNC machining parts operations resulted in variable wall thickness (target 1.2 mm ±0.05 mm, actual up to 0.3 mm variation), compromising the housing's structural rigidity and EMI shielding effectiveness. The deep cavities (80 mm) required specialized tooling and strategies to prevent tool chatter and deflection.

Third, the customer needed a partner that could support oem precision CNC machining from prototype (50 pcs) through high-volume production (2,000+ pcs/month), with the ability to scale further as production demand grew. They also required post-machining anodizing and sandblasting, plus full CMM inspection and PPAP documentation. As one of the leading CNC precision machining suppliers and precision CNC machining factories serving robotics and semiconductor industries, we were uniquely positioned to deliver the required quality and capacity.

Manufacturing Process for Precision CNC Machined Structural Housing

1. Raw material receiving and stress relief: 6061-T6 aluminum plate and bar stock were received with mill certificates. To mitigate warpage from internal stress, all raw material underwent a pre-machining stress-relief process in a controlled-temperature environment.

2. Rough machining (3-axis): Using our CNC milling service, 3-axis roughing operations removed 80% of material stock, leaving 0.3–0.5 mm finishing allowance on all critical surfaces. Roughing passes were designed to minimize heat generation and internal stress redistribution.

3. Intermediate stress relief: After roughing, the housing was removed from the machine and allowed to rest for 2–4 hours to allow internal stresses to stabilize before finishing. This step was critical to achieving the required ±0.01 mm tolerance on the 450 mm housing.

4. Precision finishing (4 and 5-axis): Our precision CNC machining service utilized 4 and 5-axis simultaneous machining for critical features. For the deep cavities (80 mm depth), we deployed extended-reach carbide tooling with vibration-dampening holders. For thin-wall finishing (1.2 mm), a climb milling strategy with reduced radial engagement (10–20% of cutter diameter) minimized deflection. All critical mounting surfaces were machined in a single clamping setup to maintain datum integrity.

5. Surface treatment: After machining, all housings underwent fine bead blasting (sandblasting) to achieve a uniform matte finish, followed by Type II anodizing per MIL-A-8625, providing corrosion resistance and a durable surface finish.

6. Final inspection: 100% CMM inspection on critical features (flatness, parallelism, bore diameters, wall thickness). Additional surface finish verification and visual inspection under 10x magnification for burrs or tool marks.

Machining Challenges and Solutions for Precision CNC Machined Components

Challenge 1: Warpage Control on 450 mm Aluminum 6061-T6 Structural Housing

During initial trials of producing CNC precision machined components from 6061-T6 aluminum, we observed warpage of 0.03–0.05 mm after rough machining, exceeding the ±0.01 mm flatness tolerance on critical mounting surfaces. 6061-T6 aluminum contains residual stress from the extrusion and heat treatment processes, which is released during machining. Solution: Implemented a three-stage stress management approach: (1) Pre-machining stress relief in controlled environment; (2) Rough machining with 0.3–0.5 mm finishing allowance; (3) 2–4 hour rest period after roughing before final finishing. This eliminated warpage and achieved consistent flatness below 0.008 mm across all production batches. This experience is essential for any precision CNC machining center service handling large aluminum components.

Challenge 2: Deep Cavity Machining (80 mm Depth) Without Chatter

The structural housing required deep cavities up to 80 mm depth with ±0.02 mm positional tolerance. Standard tooling caused excessive tool deflection, resulting in tapered walls and chatter marks. Solution: Custom extended-reach carbide end mills (length-to-diameter ratio up to 8:1) with vibration-dampening tool holders. For each finishing pass, we used the shortest possible tool protrusion and employed high-speed machining (HSM) strategies with small radial engagement (5–10% of tool diameter). This achieved cavity wall finishes of Ra ≤ 0.8 µm with zero chatter.

Challenge 3: Maintaining 1.2 mm Thin Walls Without Deflection

Several thin-wall sections (minimum 1.2 mm thickness) were required for weight reduction and component packaging. During precision custom CNC machining parts operations, the thin walls deflected under cutting forces, resulting in wall thickness variation up to 0.3 mm. Solution: Implemented a climb milling strategy with reduced feed rate (0.02–0.05 mm/tooth) and light depth of cut (0.05–0.1 mm) for final finishing passes. Additionally, sacrificial support material was left in place during machining and removed in a final light finishing pass. This delivered consistent wall thickness within ±0.02 mm.

Challenge 4: Achieving ±0.01 mm Tolerance on Precision Mounting Surfaces

The housing required multiple precision mounting surfaces for motors, sensors, and control boards, all requiring ±0.01 mm flatness, parallelism, and positional tolerances. Single-setup 5-axis machining was essential to maintain datum integrity. Solution: All critical surfaces were machined in a single 5-axis clamping setup using vacuum fixturing to prevent part movement. This approach, standard for precision CNC machining factories, reduced positional tolerance variation by 60% compared to multi-setup processes.

Challenge 5: Scaling from Prototype to High-Volume OEM Precision CNC Machining

The customer required 50 prototypes initially, with ramp-up to 2,000 pcs/month within 12 weeks and the ability to scale to 10,000+ pcs/month for future production demands. Solution: Implemented modular fixturing systems for rapid changeover (under 30 minutes) and designed process parameters that could be transferred across multiple CNC machined parts workstations. We also invested in additional 5-axis machining centers to ensure capacity headroom, positioning ourselves as a CNC precise machining manufacturers capable of supporting growing demand.

Quality Control for Precision CNC Machined Components Manufacturer

As a leading CNC precision machining manufacturer serving robotics, automation, and semiconductor OEMs, we maintain a rigorous QC protocol under ISO 9001 certification:

• In-process checks: CNC probe measurement of critical mounting surfaces, bore diameters, and wall thickness after every 5 parts. All results are automatically logged and trend-monitored.

• CMM inspection (first piece + every 50 pcs): Full geometric verification including flatness, parallelism, perpendicularity, concentricity, position tolerances, and bore roundness.

• Surface finish measurement: Performed on every 20th part using a Mitutoyo profilometer; any reading above Ra 0.8 µm on critical surfaces triggers tool inspection.

• Wall thickness verification: Ultrasonic thickness testing on thin-wall sections (minimum 1.2 mm) for every 50 pcs.

• Visual inspection: 100% under 5x magnification checks for burrs, scratches, tool marks, or surface defects. Anodized housings are inspected for color consistency and coating integrity.

• Traceability: All inspection data linked to the serial number via our ERP system, supporting full traceability for customers requiring oem precision CNC machining parts documentation.

• PPAP support: Level 3 PPAP documentation available for automotive and medical applications requiring oem precision CNC machining.

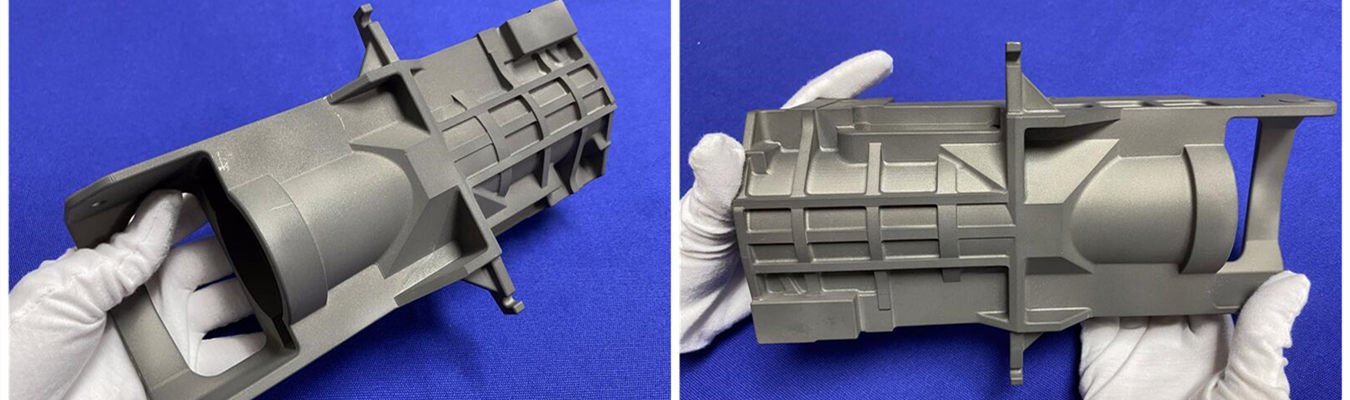

Production Results: High-Volume Precision CNC Machined Structural Housings

The customer has since expanded their portfolio with us to include additional CNC precision machined components for semiconductor equipment, medical robots, and industrial automation systems, validating our position as a preferred CNC precision machining suppliers and precision CNC machine shop suppliers for critical structural components.

Industry Applications of Precision CNC Machined Components

This manufacturing capability serves diverse industries requiring complex structural housings and CNC precision machined components:

• Robotics: Robotic arm bases, joint housings, end-effector mounting plates, and control enclosures.

• Industrial automation: Machine frames, sensor mounting brackets, conveyor system components, and pick-and-place machine parts.

• Semiconductor equipment: Wafer handling chambers, inspection tool housings, precision stages, and gas delivery system components.

• Aerospace & defense: Structural housings for avionics, sensor enclosures, and actuation system components.

• Medical devices: Imaging system housings, surgical robot components, and diagnostic equipment enclosures.

• Automotive: Sensor housings for ADAS systems, electronic control unit (ECU) enclosures, and battery pack structural components.

• Energy & power: Inverter housings, battery management system enclosures, and power distribution components.

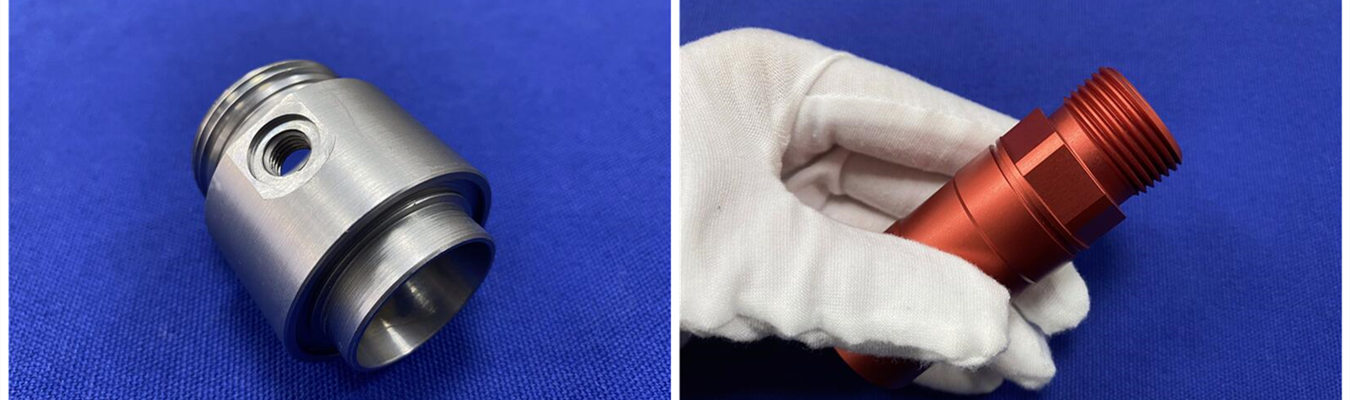

Related Manufacturing Capabilities for Precision CNC Machining

As a leading precision CNC machining company with extensive experience in CNC precise machining manufacturers and precision CNC machining center service operations, we offer a comprehensive range of capabilities. Our precision CNC machining service covers 3, 4, and 5-axis milling, Swiss turning, and hybrid turn-mill operations. Our CNC milling service handles complex 3D contouring, deep cavity work, and thin-wall machining. Our CNC turning service fleet supports rotational components up to 300 mm diameter. We also specialize in:

• Large-part machining: Components up to 450 mm (as demonstrated in this case study).

• Multi-axis simultaneous machining: 5-axis contouring for complex freeform surfaces and undercuts.

• Aluminum 6061-T6 and other aerospace alloys: Extensive experience in CNC precision parts machining service for aluminum, titanium, stainless steel, and engineering plastics.

• Surface treatments: Type II and Type III anodizing, sandblasting, passivation, painting, and powder coating.

• Assembly and testing: Sub-assembly, leak testing, and functional testing available.

We support prototyping through high-volume production (50 to 100,000+ pcs/year) and maintain ISO 9001:2015 certification. For customers requiring oem precision CNC machining and oem precision CNC machining parts, we provide DFM support, material certification, CMM inspection data, and PPAP Level 3 documentation. As one of the leading precision CNC machining factories and precision CNC machine shop suppliers, we are committed to delivering precision, quality, and reliability.

Request a Quote

Ready to partner with a trusted CNC precision machining manufacturer for your structural housing or complex component requirements? Submit your CAD model (STEP, IGES, Parasolid) and 2D drawing with tolerances.

We will respond within 24 hours with:

• DFM analysis for thin-wall, deep cavity, and tolerance feasibility.

• Prototype pricing and lead time (as fast as 7–10 business days for 50–100 pcs).

• Volume pricing for 500–10,000+ pcs/month.

• Sample first-article inspection report with CMM data (free).

• Surface treatment recommendations (anodizing, sandblasting, plating).

Email: quote@falconcncswiss.com

Reference CASE-STR-HOUSING for a complimentary machining feasibility assessment and CMM verification of your existing parts.
