Mastering Precision: The Critical Role of Tight Tolerance OD/ID Control in Performance Bushings

When a high-speed spindle fails, the culprit is often invisible—a micron-scale gap in a precision turned bushing. For engineers sourcing CNC Swiss turning parts, maintaining tight tolerance Swiss machining on outer diameter (OD) and inner diameter (ID) is non-negotiable. Without ±0.0001” control, concentricity fails, wear accelerates, and your entire assembly risks catastrophic downtime. At Falcon CNC Swiss, we manufacture high precision Swiss turned bushings for medical, automotive, and robotics applications where microns matter. This guide explains how to specify, machine, and verify custom precision bushings that perform under extreme loads.

What Is a Bushing? Purpose and Meaning in Precision Engineering

Before diving into tolerances, let’s clarify the basics. A bushing is a cylindrical mechanical component that provides a low-friction, wear-resistant interface between two moving parts—typically a shaft and a housing. Unlike rolling element bearings, bushings (also called sleeve bearings) use sliding contact.

What is the purpose of a bushing?

• Reduce friction and vibration

• Protect shafts from direct metal-to-metal contact

• Distribute loads evenly across a large surface area

• Compensate for minor misalignments

What is bushing meaning in CNC manufacturing?

It refers to a machined component where OD and ID are precisely controlled to create an interference or slip fit. For high tolerance bushings, even a 0.005mm deviation can destroy lubricant film and cause seizure.

Internal Resource: Explore our CNC turning machining capabilities for high-volume bushing production.

The Science of Tight Tolerance OD/ID Control in Swiss Machining

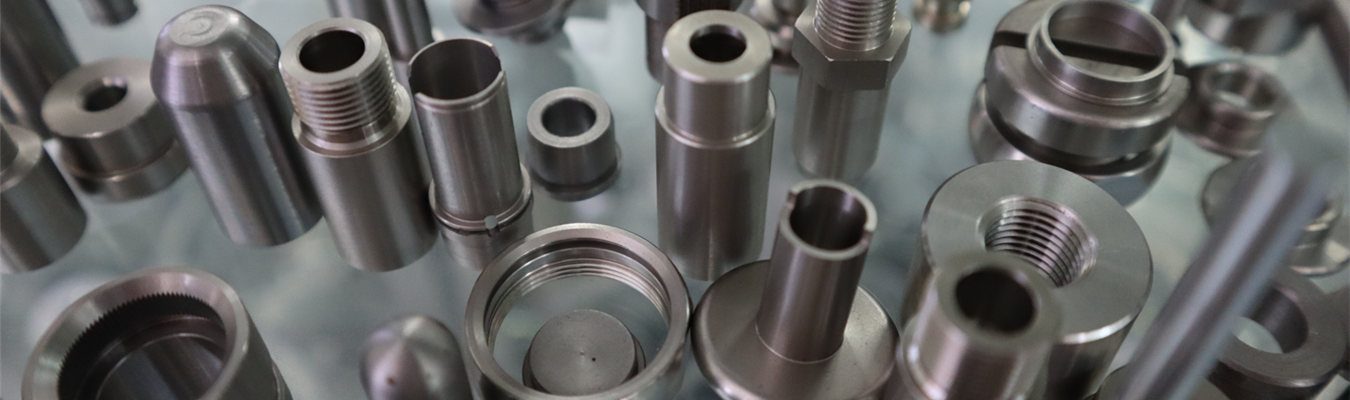

Why OD and ID Control Defines Performance Bushing Quality

In CNC turned bushings, the relationship between outer diameter and inner diameter dictates fit class, load capacity, and thermal behavior. Using a Swiss lathe bushing manufacturer like Falcon ensures:

For long slender bushing machining, maintaining straightness within 0.0005 inches per inch is critical. Our Swiss-type lathes with guide bushings eliminate deflection, even for L/D ratios exceeding 10:1.

What Are Precision Bearings? Distinction from Standard Bushings

Precision bearings are components manufactured to tighter tolerances (often ABEC 5 or higher) and stricter geometric controls. While a standard bushing may have ±0.001 inches tolerance, precision bore bushings for robotics or medical devices require:

• Total Indicated Runout (TIR)  0.0002 inches

• Roundness within 0.0001 inches

• Certified material traceability

Falcon CNC Swiss produces Swiss machined bushings that function as precision bearings in applications like surgical tools and sensor housings.

What Are the Types of Bushings? (Material and Application Guide)

Engineers must match bushing type to operating conditions. Below is a classification based on CNC bushing fabrication methods:

For custom diameter bushings, we machine any size from 0.5mm to 80mm OD using live tooling and sub-spindle synchronization.

Need a custom solution? Request a quote for Swiss machining services with free DFM feedback.

Manufacturing Processes for Ultra-Precision Turned Bushings

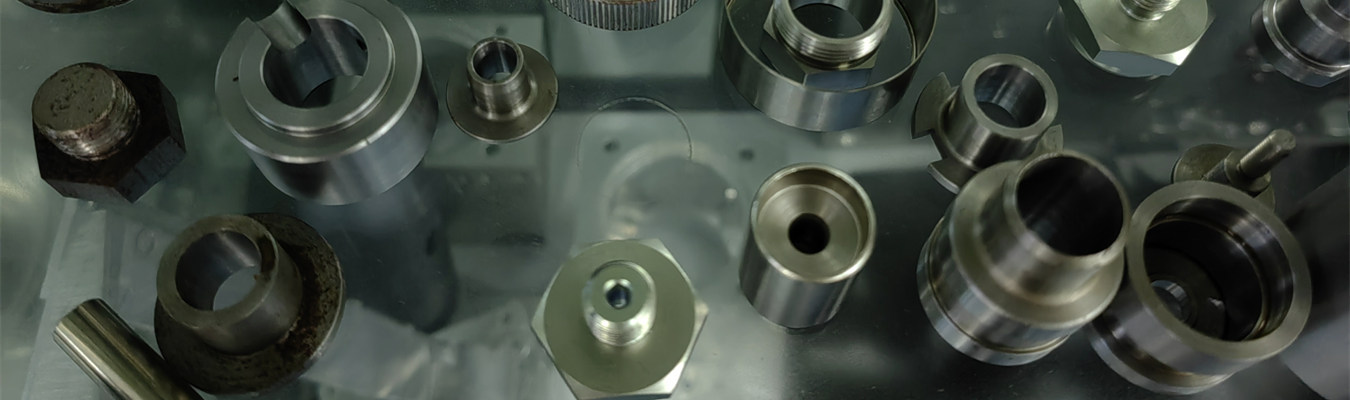

CNC Swiss Turning: The Gold Standard for Small Diameter Swiss Machining

Conventional lathes struggle with small, slender bushings due to part deflection. Small diameter Swiss machining solves this using a guide bushing that supports the material within 5mm of the cutting tool. Benefits for CNC turned sleeve bushings include:

• Concentricity held to 0.0001 inches TIR

• Surface finishes down to Ra 0.8

• Batch production CNC bushings with 100% CMM inspection

We combine live tooling, milling, and back-working for complex geometries—oil grooves, cross-holes, or external threads—in a single clamping.

Secondary Operations for Tight Tolerances

After turning, some high precision Swiss turned bushings require:

• Centerless grinding – for OD roundness below 0.00005 inches

• Honing – to create controlled cross-hatch pattern on ID for oil retention

• Passivation or coating – DLC, anodizing, or electroless nickel for wear resistance

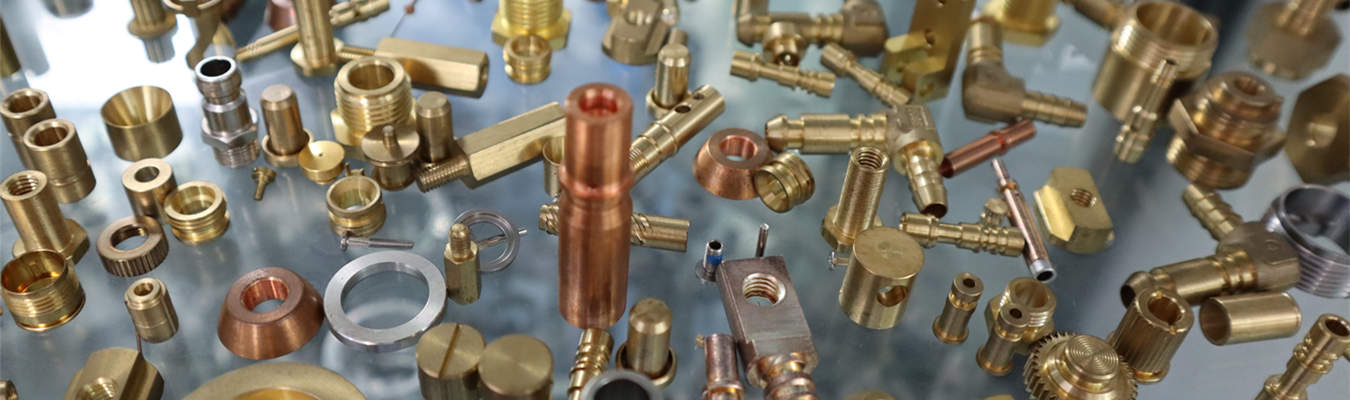

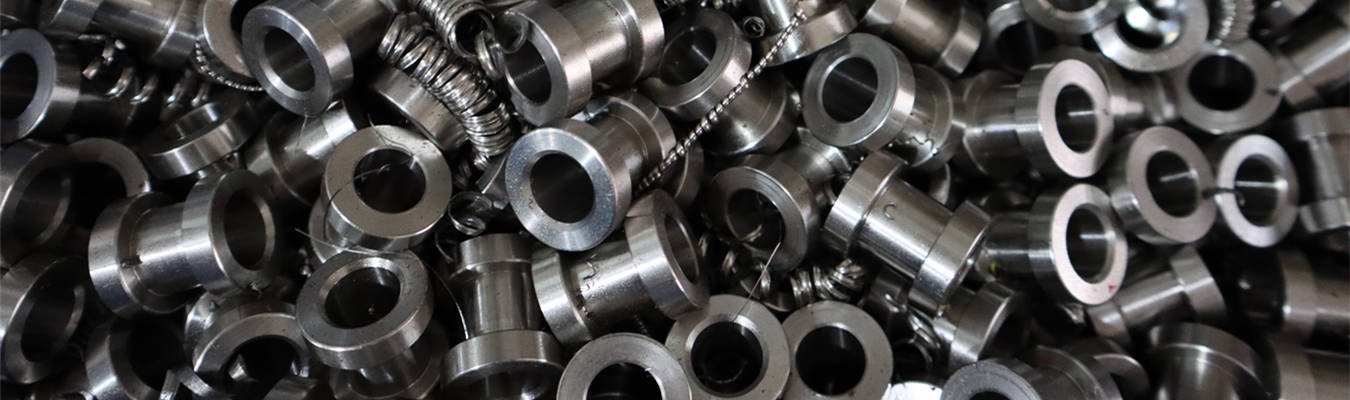

Every batch undergoes in-process SPC and final CMM verification. We maintain full traceability on stainless steel machined bushings, brass precision bushings, aluminum CNC bushings, and plastic Swiss machined bushings.

Material Selection for Performance Bushings

Your choice of material directly affects wear life, corrosion resistance, and thermal stability. Falcon CNC Swiss machines a wide range:

For titanium precision bushings or PEEK machined bushings, our Swiss lathes use specialized tooling and coolant strategies to maintain tolerances without burrs.

Real-World Applications Across Industries

Automotive Turned Bushings and High-Load Systems

In engines, transmissions, and turbochargers, automotive turned bushings must survive temperature swings from -40°C to 200°C while maintaining clearance. We produce bronze turned bushings with helical oil grooves for connecting rods and suspension pivot points.

Medical Grade Precision Bushings

Surgical robots and dental handpieces require medical grade precision bushings with:

• Biocompatible materials (PEEK, titanium)

• Zero burrs or sharp edges

• Full lot traceability and ISO 13485-compliant documentation

Falcon CNC Swiss operates in a clean environment, ensuring plastic Swiss machined bushings for drug delivery devices meet USP Class VI requirements.

Robotic Arm Bushings and Sensor Housings

Collaborative robots (cobots) use robotic arm bushings that provide low-friction, backlash-free motion. Our sensor housing bushings integrate directly into encoder or proximity switch assemblies, maintaining alignment within 0.0002 inches.

Equipment Wear Bushings

Heavy machinery, conveyors, and packaging lines rely on equipment wear bushings that can be replaced without changing shafts. We machine CNC machining bushings from hardened steel or self-lubricating composites for extended service intervals.

Inspection and Quality Assurance Protocols

You cannot inspect quality into a part—but you must verify it. Our protocol for custom precision bushings includes:

• First article inspection (FAI) – Full dimensional report per AS9102

• In-process sampling – Every 20 parts measured for OD, ID, and length

• Final CMM – 100% inspection of critical tolerances for high tolerance bushings

• Surface finish profilometer – Ra and Rz readings on sealing surfaces

• Hardness testing – Rockwell or Vickers for heat-treated materials

We also offer non-destructive testing (dye penetrant or ultrasonic) for mission-critical CNC turned bushings in aerospace applications.

Matching the Bushing to Your Load and Speed Requirements

Every bushing has a pressure-velocity (PV) limit. Use this decision matrix:

Optimize your design now. Contact our engineers to review your precision inserts and bushings requirements. We provide free feasibility analysis and cycle time estimates.

Common Failure Modes and How to Prevent Them

Why Falcon CNC Swiss for Your Performance Bushing Needs?

Swiss-type CNC lathes with 0.0001 inches positioning accuracy

• Materials in stock: Stainless, brass, aluminum, titanium, PEEK, bronze, and more

• Batch sizes: Prototype (1–50 pcs) to batch production CNC bushings (10,000+ pcs)

• Lead times: As fast as 5–10 business days for custom diameters

• Certifications: ISO 9001:2015, 16949, ITAR registered

We don’t just machine parts—we engineer solutions for long slender bushing machining, precision bore bushings, and custom diameter bushings that perform under your exact conditions.

Conclusion

Mastering tight tolerance OD/ID control transforms a simple cylinder into a high-performance precision turned bushing that extends machine life, reduces vibration, and prevents costly downtime. From small diameter Swiss machining to plastic Swiss machined bushings and titanium precision bushings, every material and process choice impacts your final assembly.

Do not settle for commodity bushings. Demand documented accuracy, traceable materials, and engineering support.

Ready to source your next custom precision bushing? Visit our automotive precision CNC machining page to upload your drawing. Our engineers will respond within 24 hours with tolerance analysis and a competitive quote.

Need high precision Swiss turned bushings with tight OD/ID tolerances?

Falcon CNC Swiss provides engineering-driven CNC bushing fabrication for medical, automotive, robotics, and industrial applications. Send your RFQ today for fast technical review.
