What Are Pogo Pins? A Manufacturer's Answer to Reliable Spring Loaded Contacts
Customer: Global Consumer Electronics and Medical Device OEM
Component: Precision pogo pins - spring-loaded contacts for multi-pin pogo connectors
Challenge: To produce pogo pin connectors in a mass-production environment while achieving the following criteria - ±0.005 mm tolerances, < 50 mΩ contact resistance and durability for 1 million cycles - and to accommodate custom layouts of 2 to 24 pins.
Solution: Use of state-of-the-art precision manufacturing technologies by Falcon CNC Swiss to produce pogo pin connectors through high-speed CNC Swiss machining of brass, beryllium copper and selective gold plating; automatic assembly; and 100% electrical testing.
Result: Delivery of 1,000,000 pcs/month; 99.7% yield; 0 ppm field failures during a period of 18 months; 3-week lead time for prototype connector pogo pin designs.

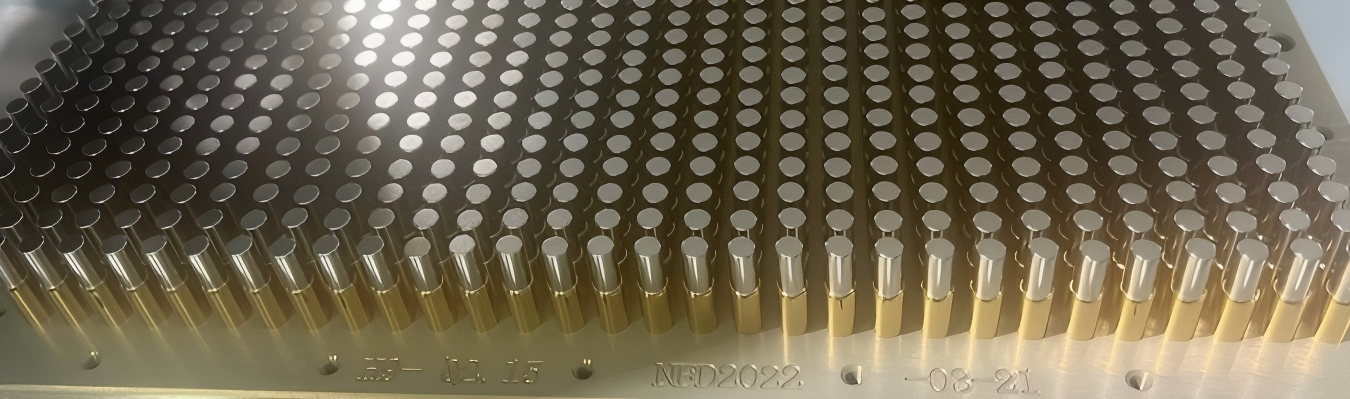

Project Overview: From Pogo Pin Basics to Custom Multi-Pin Connector Solutions
Understanding the role of pogo pin connectors is important. Pogo pins are electrical contacts that use springs to connect multiple contacts to a single contact either temporarily or semi-permanently when using charging cradles and test fixtures. A top-tier original equipment manufacturer (OEM) required a dependable pogo pin manufacturer to create custom pogo pin connector assemblies for their next-gen smartwatch charging dock and patient monitoring data link.
They wanted pogo pins contacts that had gold-plated, low contact resistance, and could last for many thousands of cycles of mating and unplugging. They also wanted to be able to have their pogo pin supplier produce custom designs for their multi-pin layouts, which included pogo pin socket arrays that would accommodate different height pins. Falcon CNC Swiss is a well established pogo pin manufacturer and was able to provide them with a complete turnkey solution from micro pogo pins for compact devices to spring loaded pogo pin connector assemblies that were capable of handling large amounts of current (5A) for charging purposes.
Our customer wanted to know the cost and manufacturability of pogo pin connectors. We provided a design for manufacturing (DFM) evaluation and prototype within five business days as well as a process plan for producing one million pogo pin connectors monthly using Falcon CNC Swiss. This case study describes how Falcon CNC Swiss was selected by our customer as their primary pogo pin connector manufacturer and supplier for multiple products. Using our full range of Swiss machining services, we provide highly complex parts (metal and plastic) with extremely tight tolerances, reduced lead times, and unmatched engineering assistance to customers in the medical device, consumer electronics, and automotive industries.
Technical Specifications Table: Precision Pogo Pins and Connector Parameters
| Parameter | Value | Remarks |
|---|
| Product Name | Precision Pogo Pins | Spring loaded contacts for multi-pin pogo connector |
| Contact Type | Spring Loaded Contacts | Plunger + barrel + coil spring |

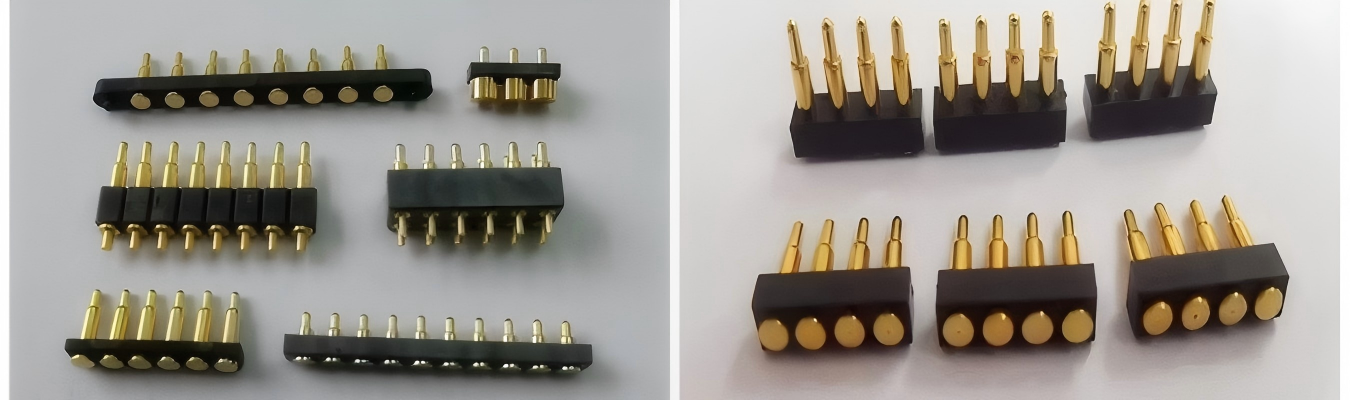

| Connector Style | Multi-Pin Pogo Connector | 2 to 24 pins, custom layouts |
| Material | Brass and Beryllium Copper | Barrel: brass; plunger/spring: BeCu |
| Surface Finish | Gold Plated Contacts | 1–3 μm hard gold over nickel |
| Manufacturing Method | Falcon CNC Swiss – Swiss CNC Machining | Citizen L20, 12-axis, ±0.005 mm |
| Precision Level | ±0.005 mm | Tip diameter, barrel I.D., overall length |
| Contact Resistance | <50 mΩ (initial) | Low resistance design for stable charging |
| Durability | Up to 1 Million Cycles | Verified by life cycle testing |
| Application | Charging, Signal Transmission, Testing | Wearables, medical, industrial, EV |
| Electrical Performance | Stable High-Frequency Conductivity | Up to 1 GHz, low insertion loss |
| Connector Configuration | Custom Multi-Pin Layout | Any pin count, pitch, housing |
| Production Capability | 1,000,000 pcs / month | Scalable to 3 million/month |
| OEM Service | Available | Private label, design ownership optional |
| Prototype Service | Available | 3–7 days for 50–200 pcs |
| Inspection Method | 100% Critical Dimension Verification | Vision + electrical test + CMM |
Customer Challenge: Why Existing Pogo Pin Contacts Failed
Before partnering with Falcon CNC Swiss, the customer sourced pogo pins connector assemblies from a general stamping house. They encountered three major failures:
Inconsistent pin height – Variation >±0.08 mm across a 6-pin pogo pin socket, causing intermittent connection.
Gold plating wear – After 30,000 cycles, the pogo pin contacts showed exposed base metal, raising contact resistance above 200 mΩ.
Spring fatigue – The beryllium copper springs lost preload after 150,000 cycles, leading to signal dropout in high-frequency data transfer.
A pogo pin manufacturer that can produce small pogo pins (1.5mm dia x 4mm long) with tight tolerances and long-term reliability was needed by the customer. They also wanted a pogo pin supplier that could provide the customer with pogo pin cable assemblies and pogo pin sockets for field replacement, as well as education on what pogo pins are in reference to material selection, plating thickness and spring design so they could specify them correctly on future products. Falcon CNC Swiss as a trusted manufacturer of pogo pin connectors offered full support on custom pins and shafts and any other precision part through our specific Pins and Shafts capabilities including high-volume custom shaft machining, drive shafts, motor shafts and custom dowel pins for demanding applications.

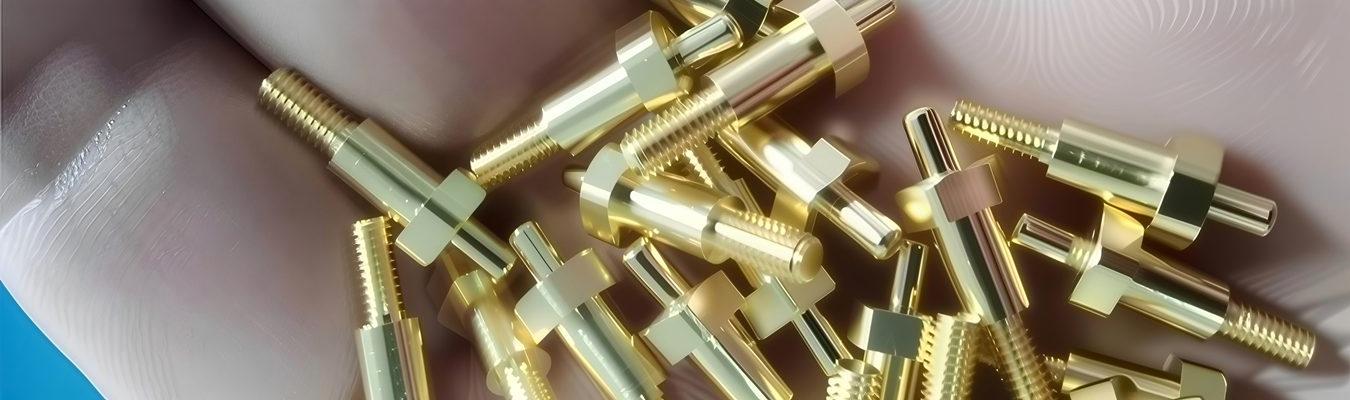

Manufacturing Process for Connector Pogo Pin Assemblies
Falcon CNC Swiss is a precision machining company that specializes in the manufacture of high precision machined components using the Swiss turning process. We use a highly structured, quality-assured workflow in the manufacture of pogo pin connectors. Below is a brief outline of the main elements.
MATERIALS
Barrel: Brass C36000 (Mill certificates are stored).
Plunger/Spring: Beryllium Copper C17200 (Mill certificates are stored).
Pogo pins have different processes (Machining). The following list includes the process and the tolerance specifications for each individual pogo pin component.
Barrel: Turned I.D./O.D., undercut for spring retention (+/- 0.005mm).
Plunger: Micro turned, tip rounded (+/- 0.003mm. Tip diameter).
Spring: Precision coiled spring on CNC spring machine, spring force certified to +/- 5%.
Selective Gold: Plating, spring, and plunger tip 2-micron hard gold plate (ASTM B488) for superior wear resistance.
Automated Sub Assembly: Insertion of spring into barrel and crimping of plunger, monitored for force in real-time.
Multi Connector Assembly: Loads the pogo pin sockets into custom molded housing with coplanarity adjusted with laser to +/- 0.02mm.
Electrical Test: 100% of all pogo pins are electrically tested for contact resistance, dynamic resistance during stroke, and insulation resistance (500VDC) using four wire Kelvin.
Cable Assembly (Optional): Soldering or crimping locked pogo pin cables to the connector tails.
Packaging Traceability: Every connector has a laser mark indicating the lot code. Additionally, all pogo pins are packed in ESD safe trays.
We utilize our advanced Swiss Machining Component capabilities to manufacture each pin, shaft and connector to meet the precise requirements of the medical, automotive and electronics industries. Our commitment begins with a quality assured process, as we employ the latest Swiss screw machining technologies through ISO compliant inspections.
Machining Challenges and Solutions for Small Pogo Pins
| Challenge | Root Cause | Solution Implemented by Falcon CNC Swiss |
|---|
| Plunger tip diameter variation | Micro tool wear on 0.4 mm end mill | PCD coated micro tools + tool life monitoring (500 pcs/edge) |
| Barrel I.D. taper | Deep hole drilling (L/D=10:1) | Gun drilling with carbide guide bushing + peck cycle |
| Gold thickness inconsistency | Complex geometry, current density variation | Robotic selective plating + XRF in-line measurement |
| Spring force drift | Wire tension fluctuation during coiling | Servo-controlled spring coiler with force feedback (CpK=1.7) |
| High contact resistance after cycling | Oxide buildup on wear track | 3 μm hard gold + proprietary dry lubricant on plunger tip |
| Pin height coplanarity | Housing mold tolerance stack | Laser active height adjustment during assembly – ±0.01 mm |
Quality Control: Ensuring Every Pogo Pin Connector Performs
Falcon CNC Swiss is an ISO 9001 and IATF 16949 certified manufacturer of pogo pins. All of their pogo pins undergo 100% critical dimension verification through the following:
1. 100% Vision Inspection - This process involves the use of a Keyence vision system to measure the tip diameter, barrel length and spring presence of each pogo pin at a maximum rate of 120 per minute.
2. CMM Sample Inspection - The Zeiss Contura Coordinate Measuring Machine is used to measure plunger concentricity, barrel I.D. roundness and overall height of pogo pins on a sample basis every 50 pcs.
3. Electrical Test - An automated electrical test of each pogo pin is conducted to measure contact resistance (max 50 mΩ), dynamic resistance profile, and insulation resistance.
4. Durability Validation - Each lot of pogo pins has been tested to a cycle of one million strokes using a custom-made test fixture. The resistance is measured every 50,000 cycles to establish durability.
5. Plating Thickness - An XRF measuring device is used to sample 5% of pogo pin gold plating tip thickness and barrel interior.
6. Spring Force Test - A digital force gauge is used to measure the pogo pin spring force at a 0.5 mm compression with a tolerance of ±10% of nominal.
7. Cleanliness - The post ultrasonic cleaning process is verified through particle count testing (maximum of 100 pieces of >50 µm per pogo pin).
All test data is lot traceable and available to the customer via a secure portal. This is especially important to medical and automotive customers. We are committed to providing our customers with a quality-assured precision machining process that meets the demanding specifications of OEM's.
Production Results: Scaling from Prototype to 1 Million Pogo Pins per Month
| Metric | Target | Achieved by Falcon CNC Swiss |
|---|
| First-pass yield (individual pogo pin) | ≥95% | 99.7% |
| Assembly yield (multi-pin connector) | ≥98% | 99.2% |
| Contact resistance CpK | ≥1.33 | 1.58 |
| Pin coplanarity (max deviation) | ≤0.03 mm | 0.012 mm |
| Durability (cycles to failure) | 1,000,000 | >1.2 million (test stopped) |
| Field failure rate (18 months) | ≤50 ppm | 0 ppm |
| Prototype lead time | 2 weeks | 5 days (rush), 10 days standard |
| Cost per pin (vs. previous supplier) | -15% | -23% at same volume |
Falcon CNC Swiss has acquired contracts from the customer for 5 different pogo pin connector configurations since that time, and the customer recently awarded Falcon CNC Swiss a contract to manufacture 24-position pogo pin sockets for use in a high-dollar medical diagnostic device. The combination of our ability to manufacture pogo pin cable assemblies and provide OEM services has established us as the only source for pogo pin connectors for charging and data interface purposes.
Industry Applications: Where Pogo Pin Connectors Excel
Pogo pin connectors are used in diverse industries requiring reliable, high-cycle electrical connections:
Consumer electronics: Smartwatch charging cradles, wireless earbud cases, tablet docks – small pogo pins (Ø1.0–2.5 mm). Falcon CNC Swiss provides specialized Precision Machining for Consumer Electronics, delivering custom enclosures, connectors, heat sinks, and miniature components that define the performance and user experience of modern consumer technology devices.
Medical devices: Patient monitoring hubs, portable diagnostic tools, surgical instrument chargers – gold plated contacts for corrosion resistance.
Electric vehicle (EV): Battery pack test fixtures, charging handle connectors – high-current spring loaded pogo pin connector designs.
Industrial automation: Test and measurement probes, PCB test fixtures – pogo pin sockets for quick replacement.
Aerospace and defense: Munition test adapters, avionics ground support – ruggedized pogo pins connector with EMI shielding.
Telecom and data centers: High-speed board-to-board connectors, signal integrity test points – pogo pin contacts for 1 GHz+ signals.
Related Manufacturing Capabilities: Beyond Standard Pogo Pins
As a full-service pogo pin manufacturer, Falcon CNC Swiss offers:
Pogo pins connector design assistance (pin pitch, current rating, spring force calculation)
Connector pogo pin prototyping (CNC machined or stamped, 3–7 day lead time)
Micro pogo pins as small as Ø0.8 mm × 3 mm length
Pogo pin cable assemblies (custom length, gauge, connector types)
Pogo pin sockets for board mounting or panel mounting
High-current spring loaded pogo pin connector up to 10A continuous
Waterproof pogo pin connectors (IP67/IP68) for outdoor/industrial use
Gold plating alternatives: silver, tin, or ENIG for cost-sensitive applications
Automated assembly of multi-pin configurations up to 100 pins
100% electrical testing with data logging for each assembly
OEM and private label – your brand on connector housings and packaging
Falcon CNC Swiss provide laser cut Swiss machining components beyond just pogo pins. This includes a variety of components including bolts and nuts, inserts and bushings, pins and shafts, connectors and fittings, valves and couplings, electrical contacts and screws. All of Falcon CNC Swiss turned parts, as well as 5-axis milled products, are produced with the highest level of tolerances, repeatability and performance for our clients in the medical, electronic and automotive industries.
We create and manufacture produced parts at volume, developing production solutions to meet your performance requirements whether your part is for prototype or full production runs.
