Case Study: Custom Aluminum Housing Parts – 5-Axis CNC Machining for Industrial Equipment

Falcon CNC Swiss made this precision aluminum housing for the purpose of its use in industrial equipment applications employing advanced CNC processes including 5-axis machining and anodized finish. The production involved complex internal designs, thin walls and ribs, and chaerging many aspects of the product.

This case study proves our efficiency in custom aluminum housing production from engineering analysis to prototype manufacture and production. By combining the knowledge of 6061-T6 aluminum and multi-axis manufacturing, we have delivered a high-quality CNC aluminum housing solution for tough industrial applications.

Project Overview: Custom 6061-T6 Aluminum Housing Manufacturing

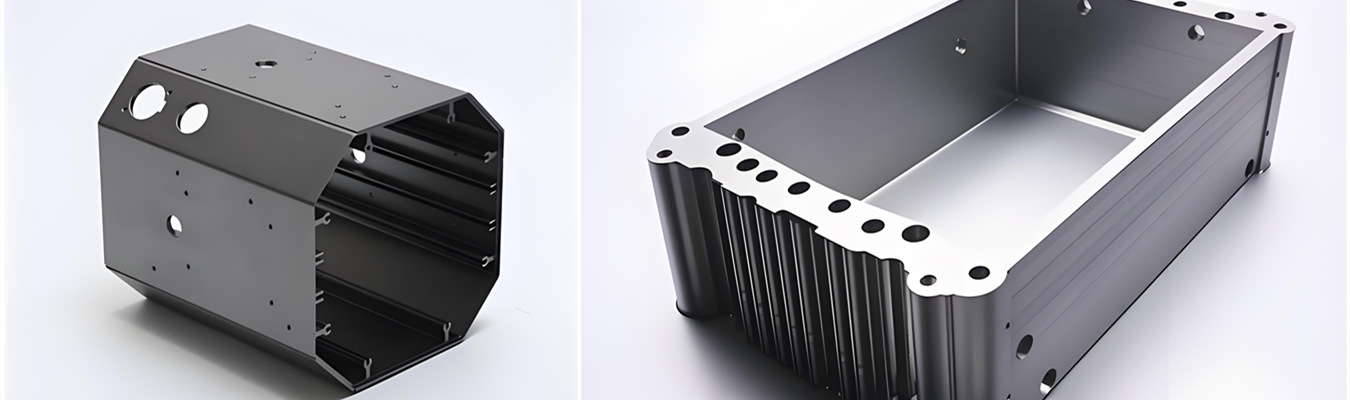

The project in question included creating custom aluminum enclosures created for industrial equipment and precision mechanisms. The component required lightweight manufacture along with strength, internal complexity, and high accuracy of dimensions.

Using 6061-T6 machining and 5-Axis CNC milling, Falcon CNC Swiss created a large envelope from aluminum characterized by thin walls, supporting ribs, and many precise features. The manufacturing process was tailored for operation stability during machining and required tolerance of ±0.02 mm.

This project demonstrates Falcon CNC Swiss’s capability in producing machined aluminum housing components with precision CNC processes, from prototype development to production manufacturing. For more information about our aluminum machining capabilities, explore our precision aluminum machining services.

Machining Challenges of Precision Aluminum Housing

In order to manufacture precision aluminum housing of large dimensions, control of technical strategy, clamping and stability of the process is required. Contrasting regular aluminum products, this type of housing has complicated internal layout, thin walls and many precise features which influence final accuracy.

Complicated Internal Layout

Aluminum housing has internal recesses, mounting faces and reinforcement structures which necessitate precise multi-axis machining. Correct tool choice and machining sequence were necessary in order to maintain accessibility and avoid unnecessary clamping.

Thin Wall and Stability of the Product

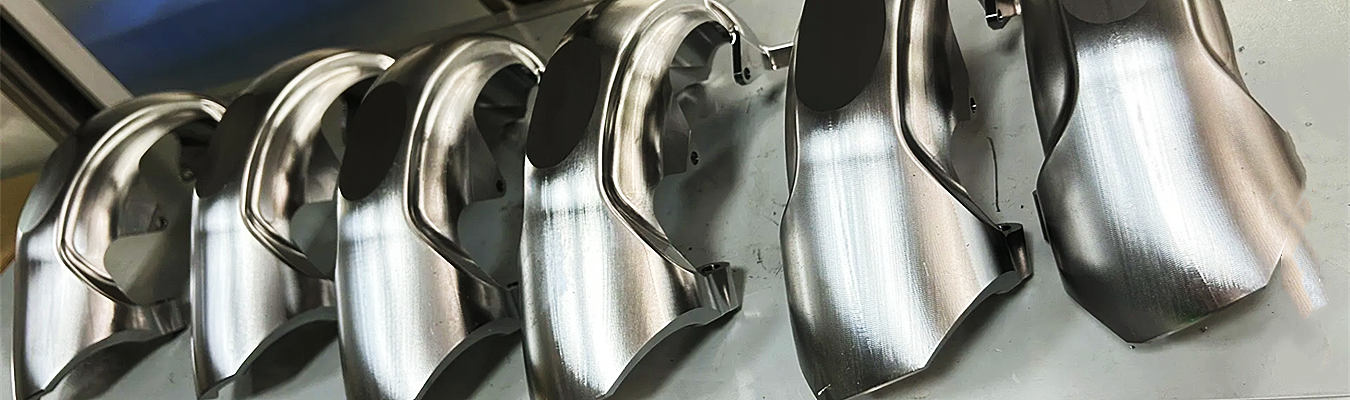

The main challenge presented by thin wall sections in aluminum housing machining is that cutting forces and tool deflection can lead to vibration and deformation. Proper cutting parameters and secure fixturing made it possible to keep dimensional stability during machining.

High Accuracy Requirements

The project had strict requirements concerning machining process, which resulted in tolerances of ±0.02 mm. Inspection and verification of the process made it possible to maintain uniformity of critical features.

Thanks to overcoming these obstacles at the engineering stage, Falcon CNC Swiss managed to produce reliable solution for CNC machining of aluminum housing and keep quality at the same level from prototype to mass production.

5-Axis CNC Machining Process for Aluminum Housing

Creating complex aluminum housings requires an efficient machining procedure to get the desired accuracy, quality, and efficiency, and Falcon's Swiss CNC machine utilized 5-axis CNC milling in order to produce multiple surfaces, inner parts, and precision features with minimum setups.

Design Review and Process Planning

The part design was examined for features such as geometry, tolerances, accessibility of tooling, and requirements for fixing elements prior to the manufacturing stage. During this step, potential issues with manufacturing were detected and the appropriate strategy for machining was developed.

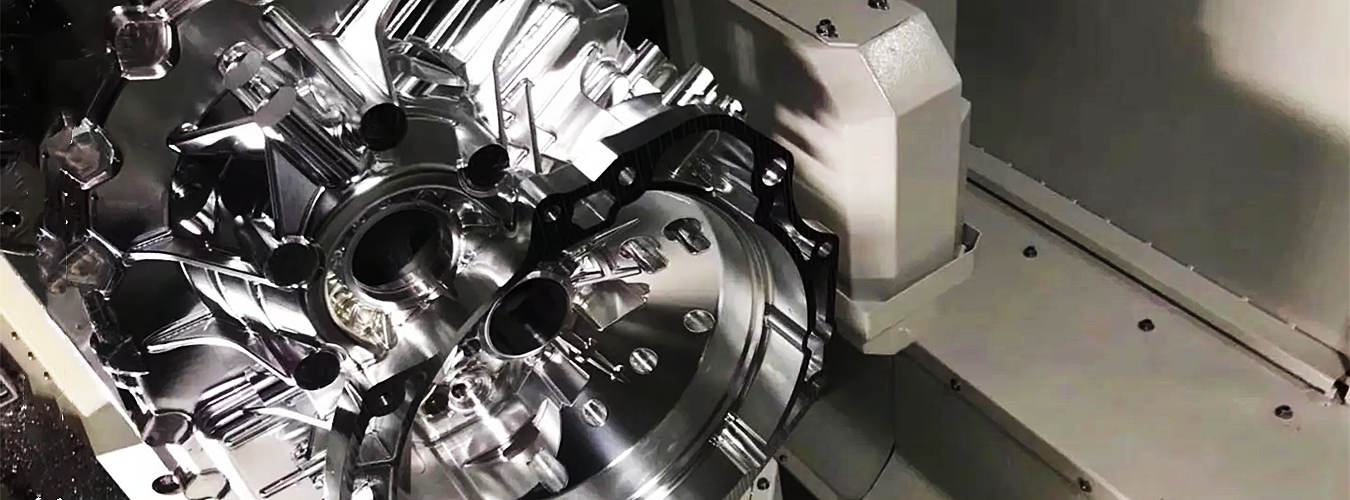

5-Axis CNC Milling

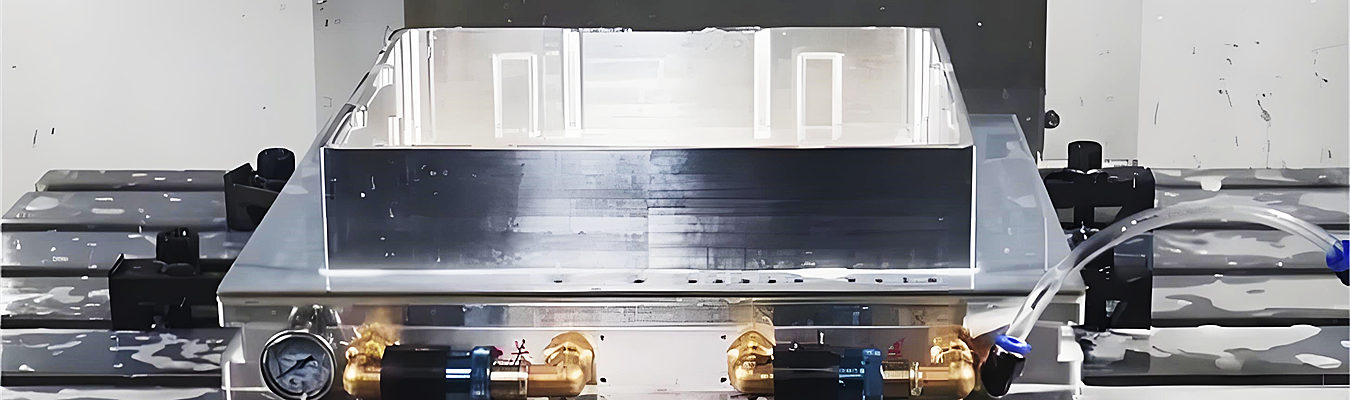

The advantages of utilizing 5-axis CNC milling when producing aluminum housing are in the ability to create multiple sides of the part in just one setup instead of various traditional setups, which improves the alignment of features, decreases repositioning errors, and maintains the consistency of dimensions.

Key machining operations included:

Complex cavity machining

Precision hole and mounting feature machining

Thin-wall structure machining

Reinforcement rib machining

Surface finishing preparation

Inspection and Process Verification

After machining, critical dimensions were verified using CMM inspection to confirm the component met the required specifications. Process control throughout manufacturing ensured repeatable results for prototype and production requirements.

By combining advanced aluminum housing milling techniques with engineering support, Falcon CNC Swiss delivers reliable solutions for customers requiring complex aluminum components and precision manufacturing. For more information about our CNC milling capabilities, visit our Aluminum CNC Milling service page.

Why 6061-T6 Aluminum Was Selected for This Housing

Choosing material is significant for efficiency and manufacturing of parts used in engineering. For this work, aluminum 6061-T6 was chosen, which combines strength, efficiency in machining, resistance to corrosion, and capacity for surface treatment.

Aluminum 6061-T6 is popular in the production of machine parts that imply quality performance without excessive weight. The good machining properties are why this aluminum alloy fits well for difficult operations providing complicated parts such as milling, drilling, and special detailing.

Key advantages of 6061-T6 aluminum include:

Good machinability for efficient CNC processing

Balanced strength for structural applications

Excellent corrosion resistance

Suitable surface finish after anodizing

Wide availability for prototype and production manufacturing

The materials chosen for the custom aluminum housing meet both functional and manufactural purposes. This particular aluminum alloy enabled Falcon CNC Swiss to manufacture complex internal shapes and improved machining accuracy.

Moreover, adding an anodized surface finish has greatly increased the durability and expresses aesthetic functions of this part, which makes it applicable in industrial equipment and precision systems.For more information about aluminum grades, machining characteristics, and material selection, refer to our Aluminum Machining Guide.

Achieving ±0.02 mm Precision with CMM Inspection

When working with parts like this CNC aluminum housing, accuracy and assurance of confirmation are necessary for excellent assembly and performance of that part. Falcon CNC Swiss uses various checking methods in the manufacturing process to control and maintain the quality of the important characteristics.

The client needed tolerance of ±0.02 mm, which was achieved through proper machining procedures, optimized fixation, and careful inspection process. The main checking steps included:

Evaluation of the engineering drawing and specifications

Dimensional controls during processing

Measurement of the special characteristics

Final inspection with the help of a CMM

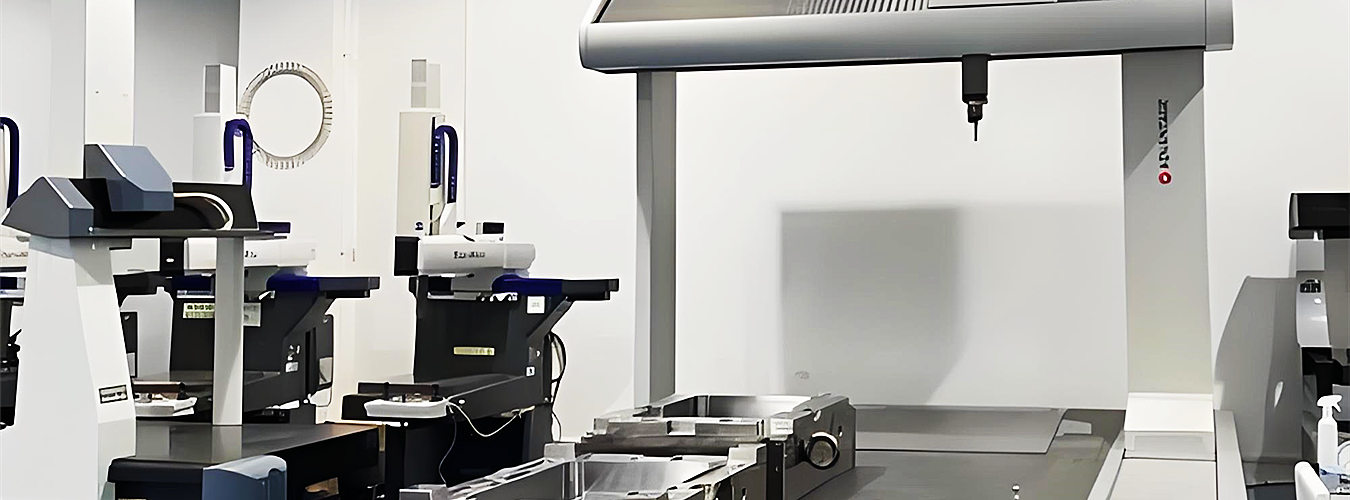

The CMM device (Coordinate Measuring Machine) is using during inspection for precise evaluation of several geometries, positions of holes, and crucial measurements. This step is very important for the aluminum housing examination because of the multilayer machined surfaces and the internal features that should fit well according to the requirements.

Quality control starts at the stage of planning for manufacturing process and includes characteristics like the material's condition, the sequence of operations and tool choice, and checking the fixation. Thanks to the precise CNC-machine processes and rigorous checking, Falcon CNC Swiss is able to help OEM customers who need efficient aluminum machining for different batch of items.

The Process of Aluminum Anodized Housing Surface Finish

Surface finishing is a critical process of enhancing the longevity, appearance, and functionality of machined aluminum parts. Specifically, this project used anodized aluminum housing surface finish to create a coating that provides good corrosion resistance and a uniform surface appearance that suits industrial equipment applications.

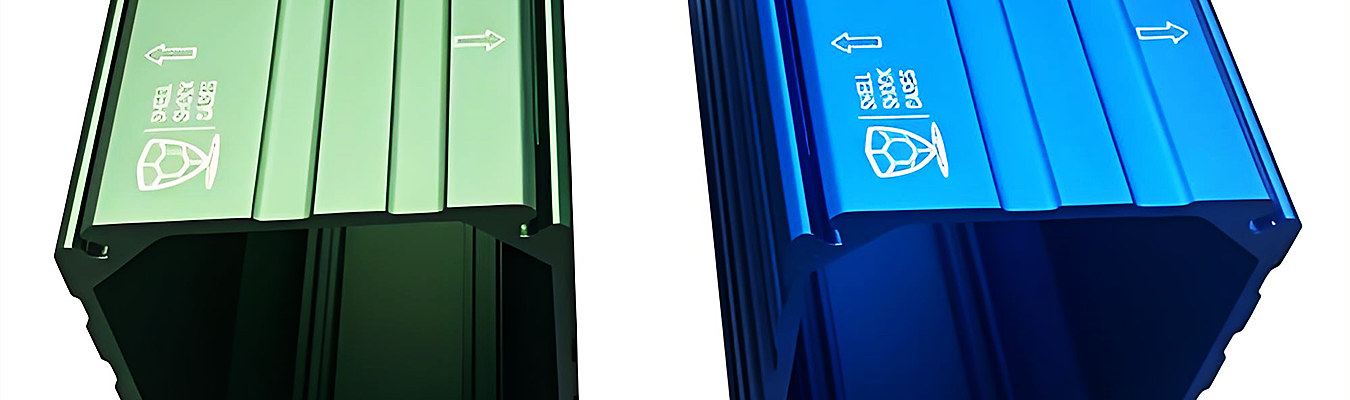

Anodizing refers to the process of creating a thin layer of oxide on the surface of aluminum, which protects it from wear while keeping the lightweight characteristics of aluminum. This process is extensively used in the production of housings and enclosures, as well as in components where appearance and productivity are equally important.

Key benefits of anodized aluminum finishing include:

• Improved corrosion resistance

• Enhanced surface durability

• Consistent appearance

• Better suitability for industrial environments

By combining precision CNC machining with professional finishing processes, Falcon CNC Swiss delivers complete custom aluminum housing solutions from raw material to finished components.

From Aluminum Housing Prototype to Production Manufacturing

In order for the aluminum housing initiative to be successful, it is required to do more than develop one prototype item. At Falcon CNC Swiss, we help our clients through the entire manufacturing equation, from the initial creation of the aluminum housing prototype to mass production.

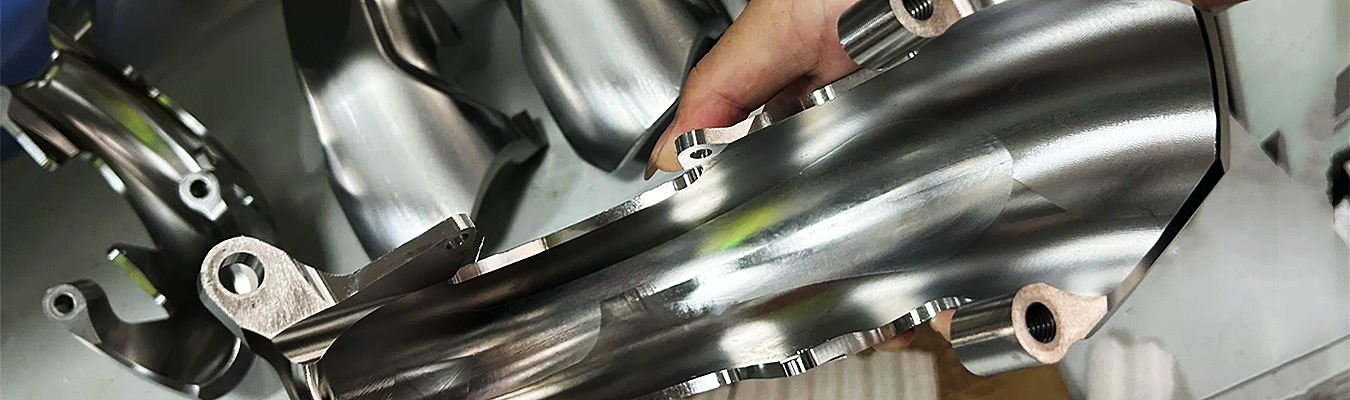

When it comes to prototyping, our engineering team goes over the part drawings, material needs, machining procedures, and manufacturing details. This will allow us to recognize the complications of the manufacturing process and optimize the component design.

The production transition process includes:

Prototype machining and functional validation

Manufacturing process optimization

Small batch production support

Quality verification before volume manufacturing

Repeat production with consistent results

Customers who are in need of small quantities of aluminum housing or small batch aluminum housing manufacturing can take advantage of flexibility without compromising on quality. Once the process is established, the production requirements will be fixed for the long run.

Falcon CNC Swiss combines know-how in CNC machining technology, engineering assistance, and production capabilities to offer OEM customers a full cycle of aluminum housing manufacturing process. Whether you require a working prototype, a small batch quantity, or ongoing production, we would be glad to assist you in achieving the idea to the finished product stage.
