Leakage due to poor machining of a single component can result in fluid loss; signal drifting from loss of pressure; or shutting the entire system down.
When it comes to precision CNC fittings in fluid power applications such as medical devices, semiconductor equipment and robotics, clean engagement of threads is critical; the ability of seals to maintain a vacuum is essential; and, assemblies need the ability to withstand vibration.
As an engineer, you require more than just a catalog part; you require an experienced precision fitting manufacturer that understands how tolerance stacks, behaves regarding different types of materials, interface with their intended mating conditions in the real world.
The purpose of this document is to present information for the selection of connectors and connectors' tolerances, the appropriate material selection for precision mating systems; what are some custom threading solutions; and how will a high precision fit ting shop turn your CAD (computer-aided design) model into a functional, reliable part.
When it comes to stainless steel CNC fittings, titanium machined connectors, and plastic CNC manufactured fittings, the same engineering principles can be used.
Send your connector drawing to Falcon CNC Swiss for a free tolerance analysis and manufacturing feasibility check.
or learn more about our overall Swiss Machining Services for precision components.

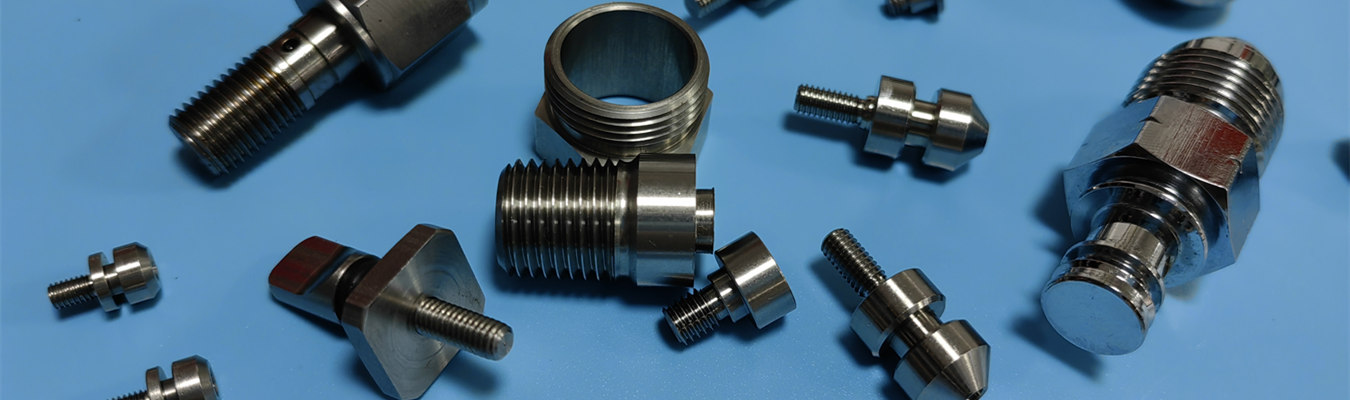

What Are Industrial Fittings?
Industrial fittings are components that connect, adapt, terminate, or seal pipes, tubes, ports, and hoses in mechanical systems. They include elbows, tees, couplings, bulkhead fittings, and custom port connectors.
However, standard fittings often fail in three situations:
Non standard port geometries – odd center distances, unusual thread sizes.
Tight space constraints – micro machined fittings with minimal wall thickness.
Extreme performance requirements – high pressure, vacuum, corrosive media, or repeated assembly cycles.
When you face any of these, a CNC machined fittings supplier like Falcon CNC Swiss becomes essential. We don’t just cut threads – we engineer the entire precision mating system from sealing face to wrench flat.
What Is Precision Pipe?
Precision pipe refers to tubing or pipe that is manufactured to much tighter dimensional tolerances than standard pipe – typically ±0.05 mm on OD and ±0.1 mm on wall thickness. But in the world of precision connector components, the term also applies to the fittings that join precision pipe. A precision pipe fitting must match the pipe’s enhanced accuracy; otherwise, the system gains nothing.
For example, a high pressure precision fitting on a precision hydraulic line requires thread concentricity within 0.01 mm TIR and a sealing surface finish ≤32 µin Ra. Standard fittings cannot deliver that.
What Are Fittings Made Of? A Material Comparison Table
The answer depends on your operating environment. Below is an engineer level material selection guide for precision fittings manufacturer projects.
| Material Family | Common Grades | Key Properties | Typical Applications |
| Stainless steel CNC fittings | 303, 304, 316, 17-4 PH | Corrosion resistance, high strength, wide temp range | Medical devices, marine, food processing, semiconductor |

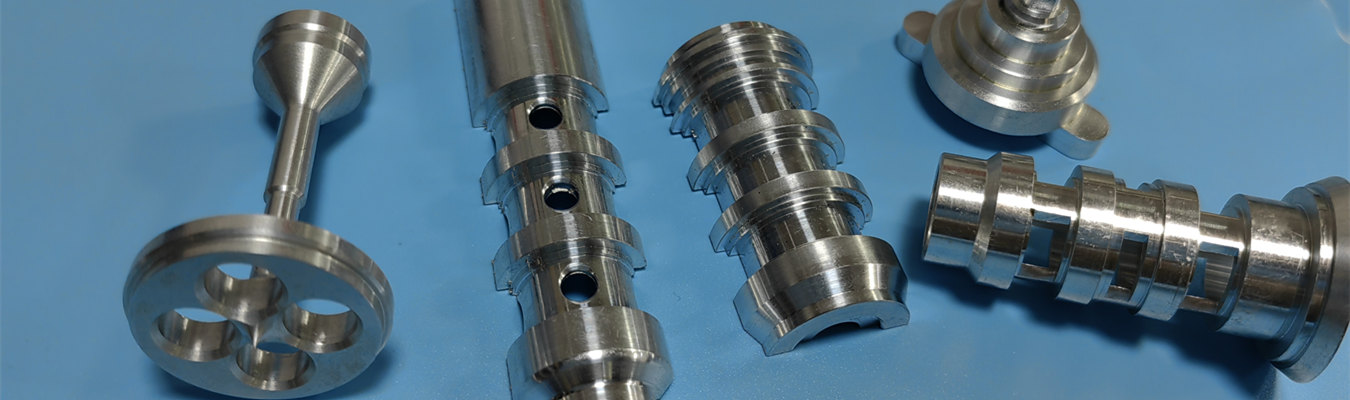

| Aluminum precision fittings | 6061, 7075 | Lightweight, fast machining, good thermal conductivity | Automotive precision connectors, robotics, aerospace |
| Brass CNC machined parts | C360, C464 | Excellent machinability, low friction, dezincification resistant | Pneumatic lines, potable water, instrumentation fittings |
| Alloy steel fitting manufacturer grades | 4140, 4340, 8620 | High tensile strength, wear resistance, can be case hardened | Heavy equipment, oil and gas machined fittings, high load connections |
| Titanium machined connectors | Grade 5 (Ti-6Al-4V) | Highest strength to weight ratio, exceptional corrosion resistance | Racing, aerospace, marine grade CNC fittings |
| Inconel precision fittings | 625, 718 | Maintains strength >800C, oxidation and creep resistant | Gas turbines, downhole tools, high temperature valves |
| Plastic CNC machined fittings | PEEK, PTFE, Acetal, Ultem | Chemically inert, non conductive, lightweight | Semiconductor fitting manufacturer, chemical dosing, electrical isolation |
For medical grade machined fittings, Falcon CNC Swiss can machine implantable grades (316LVM) and USP Class VI plastics with full material traceability and passivation.
What are the four types of fittings?
In industrial piping and connector systems, fittings are generally classified by function:
Connectors (straight fittings) – join two pipes or ports in line. Example: union, coupling, bulkhead connector.
Direction change fittings – elbows (45°, 90°), tees, crosses. Used in tight assemblies.
Termination fittings – caps, plugs, end seals. Close off a port or line.
Special purpose fittings – adapters (thread change), swivels, quick disconnects, custom thread CNC fittings for non standard ports.
Within these four types, precision mating systems often require modifications: altered thread lengths, custom sealing lands, or integrated O ring grooves. That’s where custom CNC fitting services add value.
Connector Tolerances: How Tight Is Tight Enough?
Connector tolerances directly impact sealing, assembly torque, and long term reliability. A small error in pitch diameter or concentricity multiplies across the mating system.
Recommended Tolerance Classes for Precision Connector Components
| Application Example | Critical Feature | Typical Tolerance | Inspection Method |
| General industrial fitting | Thread pitch diameter | ±0.03 mm | Thread go/no go gauge |
| High-pressure precision fitting (5000+ psi) | Seating cone concentricity | ≤0.01 mm TIR | CMM or air gauge |
| Medical device connector (fluid or gas) | O ring groove depth | ±0.005 mm | Optical comparator |
| Vacuum tight CNC fitting (10⁶ torr) | Sealing face flatness & finish | 0.002 mm / 16 µin Ra | Profilometer, laser |
| Micro machined fitting (OD < 3 mm) | Overall length & thread start | ±0.003 mm | Vision system |
Falcon CNC Swiss routinely holds ±0.005 mm (5 microns) on critical features, with in process SPC and final inspection reports. That is what separates a high precision fitting shop from a job shop.
Custom CNC Fitting Services: From Prototype to Production
Standard fittings work when port geometry, thread type, and sealing method are common.
But when you need:
An unusual size not in any catalog
A custom thread (modified NPT, BSP, UNF, or metric)
Integrated wrench flats or cross holes
A special sealing nose or O ring groove
Tight tolerance CNC fittings for high vibration
then custom CNC fitting services are the only answer.
How Falcon CNC Swiss Handles Custom Orders
Design review – We check your CAD or drawing for manufacturability, tolerance stack, and material suitability.
Material sourcing – From brass CNC machined parts to Inconel precision fittings, we stock or source verified alloys.
CNC turning and milling – Many round parts start as CNC turned fittings, then move to milling, cross drilling, and thread cutting.
Deburring and surface finishing – Critical for sealing faces and clean assemblies.
Inspection – CMM, thread gauges, surface profilometer, and optical comparator.
Documentation – Material certs, inspection reports, and (for medical or semiconductor) cleanliness verification.
Whether you need low volume CNC machining (10–100 pieces) or bulk CNC fittings order (10,000+), the same process rigor applies.
Industry Specific Precision Fittings: Medical, Auto, Semiconductor, Oil and Gas, Marine, Robotics
Different industries demand different combinations of material, tolerance, cleanliness, and documentation.
| Industry | Typical Components | Key Requirements |
| Medical | Medical device CNC parts, surgical tool connectors, fluid delivery fittings | Implantable grades, clean finishes, full traceability, ISO 13485 |

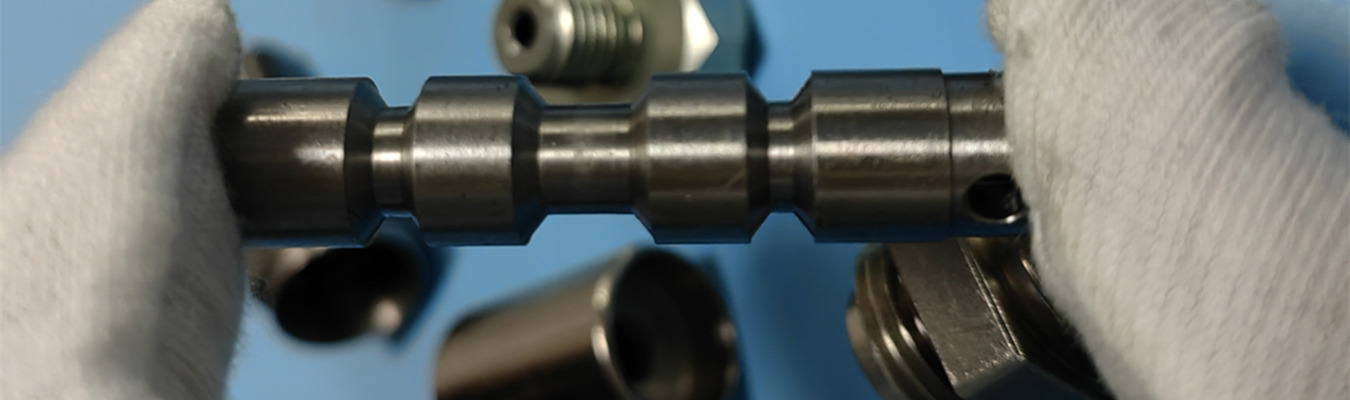

| Automotive | Automotive precision connectors, sensor ports, fuel system fittings | Vibration resistance, high volume repeatability, corrosion protection |
| Semiconductor | Gas line fittings, vacuum connectors, chamber ports | Ultra clean, low particle generation, vacuum tight CNC fittings, SEMI standards |
| Oil and gas | High pressure valves, downhole tool fittings, hydraulic adapters | High strength alloys (Inconel, 17 4 PH), pressure rating, NACE compliance |
| Marine | Marine grade CNC fittings, seawater cooling connectors | Super duplex, titanium, full saltwater corrosion resistance |
| Robotics | Robotics precision components, pneumatic fittings, sensor mounts | Compact geometry, tight concentricity, lightweight materials (aluminum, titanium) |
Falcon CNC Swiss has delivered precision connector components for each of these industries, with custom packaging and documentation as required.
Tight Tolerance, Micro, High Pressure, and Vacuum Fittings – What’s the Difference?
Not all precision fittings are the same. Engineers often confuse these categories. Here is a quick breakdown:
| Fitting Type | Defining Characteristic | Typical Tolerance | Common Materials |
| Tight tolerance CNC fittings | General high accuracy on threads, diameters, locations | ±0.01 – 0.02 mm | Stainless, aluminum, brass |
| Micro machined fittings | Very small feature sizes (<2 mm OD, fine threads) | ±0.003 – 0.005 mm | Stainless, titanium, PEEK |
| High pressure precision fittings | Robust wall thickness, high thread class, smooth sealing face | ±0.005 – 0.01 mm on seal area | 17-4 PH, Inconel, alloy steel |
| Vacuum tight CNC fittings | Extremely smooth surface finish, no porosity, low outgassing | ≤16 µin Ra, ±0.002 mm flatness | 316L stainless, OFHC copper, aluminum |
Falcon CNC Swiss offers all four types, with custom thread CNC fittings available for each category.
Why Repeatability Matters More Than a Single Perfect Part
A certified fittings manufacturer must deliver the same precision across batch after batch. One perfect prototype is easy. 10,000 identical tight tolerance CNC fittings are hard.
Our process includes:
CNC program version control – No “tweaks” without documentation.
In-process inspection – At least one critical dimension checked every 20 parts.
Tool wear monitoring – Replacing tools before tolerances drift.
Final CMM audit – Sample inspection per AQL or customer requirements.
This is how Falcon CNC Swiss becomes a reliable CNC machined fittings supplier for customers who cannot afford assembly rework or field failures.
Conclusion: Choose a Precision Fittings Manufacturer That Understands Mating Systems
A good precision fittings manufacturer does more than cut metal. It matches material to service, holds connector tolerances that actually matter for your precision mating system, and backs custom CNC fitting services with solid inspection and repeatability.
When leaks, loose threads, or part failure are not options, choose a shop that understands both the drawing and the application. That is how small fittings keep big systems working – from medical implants to subsea robots.
Falcon CNC Swiss delivers stainless steel CNC fittings, aluminum precision fittings, titanium machined connectors, brass CNC machined parts, Inconel precision fittings, and plastic CNC machined fittings – all with full traceability and on time delivery.
Start your precision connector project today
Request a custom fitting quote or a design for manufacturability review. No minimum order quantity for prototypes. Contact Falcon CNC Swiss now →
